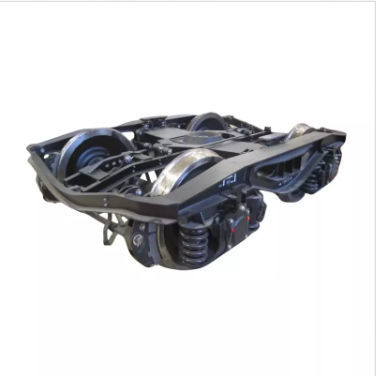

Y25 bogie

for freight1435 mmTSI

Y25 bogie Lsd1 with BA004 wheelset 920mm wheel Track gauge:1435mm Dead weight:~4038kg Wheel set load:22.5t Maximum speed:120km/h Standard:TSI,EN 16235 Product Description Derived from the UIC standard wagon bogie, the Y25Lsd- bogie is an on one-sidebraked bogie, gauge of 1435 mm. it is designed as a two-axle freight car bogie with thefollowing main parameters: Wheel base: 1800mm Weight: 4690kg Track Guage: 1435mm Wheel diameter:920mm Axle load: 22.5T Journal size: φ130*191mm Axle box distance: - 2000mm Maximum speed: - 120km/h The Y25 bogie's main dimensions meet the dimensional and other requirements of the UlCleaflet 510-1. Because of the shorten length, the bogie does not need the completeenvelope space according UlC 510-1. The Y25 bogie is certificated according TSl Wag and fulfils all requirements to be a part ofthe Y25-family according EN 16235. That's why it is dispensed from on-track testsaccording EN 16235. The Y25 bogie respects the clearance gauge Gl 1 according EN 15273-2:2014 and TSl-Wag, especially the lower clearance line according chapter A.3.3 of EN 15273-2:2014respective TSl-Wag, annex C 6, and can move over shunting hill and over shunting undstopping arrangements in working position, in case the wagon body is also suitable,therefore. The Y25 bogie is able to work in the temperature area T1 and T2 according TSl- Wag
