Wagon bogie

1435 mm2-axle

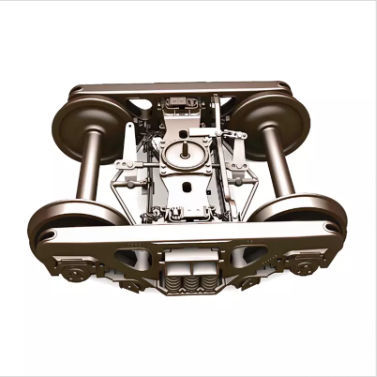

Railway Wagon Bogie K6 Product details The bogie K6 incorporates spring support plates positioned amid the dual side frames. These plates interlink the left and right bearing springs while resting atop the central bearing platform's support seat within the side frame, facilitated by the shaking seat. Simultaneously, the front and rear bearing saddles support the left and right side frames via the axle box rubber spring situated atop its guide frame. Leveraging the rubber spring's low torsional stiffness, the left and right side frames function as suspenders capable of synchronous transverse swinging. This arrangement enhances the vehicle's lateral flexibility, diminishes the weight borne by the under spring, boosts the vehicle's dynamic performance, and effectively mitigates wear and tear between the wheel and rail. Axle load: 27t Tare weight: - 5.2t Rail gauge: - 1435mm Max speed: - 100km/h Wheel diameter: - 915mm Fixed axle distance: 1860mm
