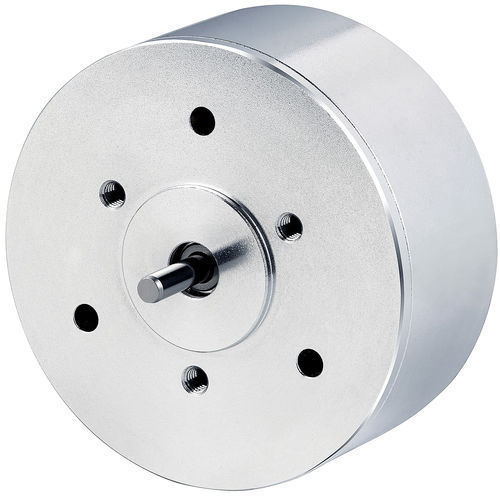

Brushless motor IS-106ZA (45STS1)

DCcompactautoclavable

Product overview
Brushless DC motor IS-106ZA(45STS1) by Mabuchi for use in surgical power tools, dental handpieces and medical ventilators. Designed for integration into compact, battery-powered and sterilizable medical devices.

Product features

• Low vibration and quiet operation: cogging suppression design minimizes vibration and acoustic emission at high speeds.
• High efficiency: up to 92% efficiency to reduce power consumption and extend runtime in battery-operated equipment.
• Medical-grade options: available with high oxidation resistance, autoclaving capability and customized magnetic circuits for specific device requirements.

Physical data
Size: Φ45 × 22 mm
Weight: 100 g

Applications / Use cases

• Dental handpieces
• Medical ventilators
• Surgical power tools
• CPAP machines

Technical specifications

• Applications: dental handpieces, medical ventilators, surgical power tools
• Operational mode: brushless
• Current type: DC
• Power: 80 W (0.11 hp)
• Efficiency: up to 92%
• Rotational speed — Min.: 20 rpm (125.6637 rad·min-1)
• Rotational speed — Max.: 45 rpm (282.7433 rad·min-1)
• Size: Φ45 × 22 mm
• Weight: 100 g
• Options: high oxidation resistance, autoclaving, customized magnetic circuits
