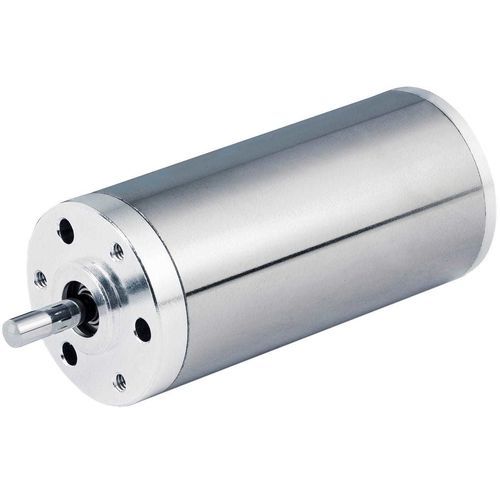

Brushless motor IS-07NZA (22SLS1)DCBLDCautoclavable
Add to favorites
Compare this product
Characteristics
- Type
- DC, brushless, BLDC
- Configuration
- small-size, lightweight, autoclavable
- Applications
- for surgical power tools, for dental instruments, for CPAP machine, for respiratory ventilators
- Other characteristics
- custom, high-efficiency, low-noise, high-speed, low-vibration
- Power
0.04 W
(0 hp)- Rotational speed
42,000 rpm
(263,893.7829 rad.min-1)- Diameter
22 mm
(0.87 in)
Description
Main applications
Key product features
Physical data
Technical specifications
Sterilization & customization options
Integration & recommendations
- Hospital ventilators
- CPAP machines
- Surgical power tools
- Dental treatment handpieces
Key product features
- Low vibration and quiet operation: cogging-suppression design minimizes vibration and acoustic noise even at high speed.
- High efficiency: up to 92% efficiency reduces power draw and extends runtime for battery-powered devices.
- Compact brushless DC construction suited to confined instrument housings.
- Flexible customization: options for enhanced oxidation resistance, autoclave-compatible materials, and tailored magnetic circuits.
Physical data
- Size: Φ22 × 45 mm
- Weight: 88 g
Technical specifications
- Applications — for dental handpieces, for medical ventilators, for surgical power tools
- Operational mode — brushless
- Current type — DC
- Power — Max.: 44 W (0.06 hp)
- Rotational speed — Max.: 42,000 rpm (263,893.7829 rad·min⁻¹)
Sterilization & customization options
- Material and finishing options to support autoclaving cycles and increased oxidation resistance on request.
- Magnetic circuit and bearing configurations configurable for application-specific torque and speed profiles.
Integration & recommendations
- Designed for OEM integration into compact medical devices; recommended validation for sterilization cycles and clinical usage conditions.
- Contact Mabuchi for detailed drawings, customization options and support for regulatory or certification needs.
