Volume flow meter RSC-900-F-1

for waterwirelessEthernet

Product overview
The Wasens RSC-900-F-1 is a wireless, app-based water flow monitoring system designed to detect visible and concealed leaks and provide usage trending for commercial and multi-unit applications. The system uses its own wireless communications to report flow events and alerts to a smartphone app and supports centralized monitoring for property managers.

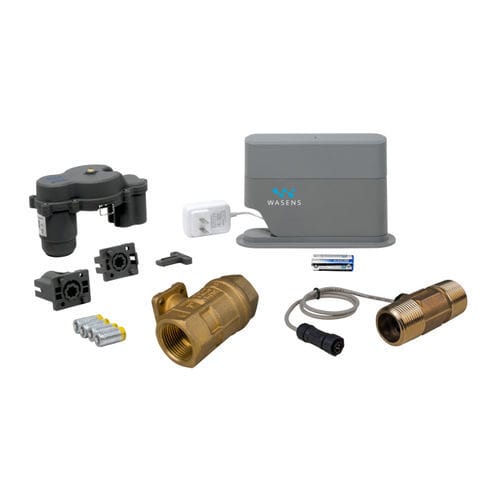

What the kit includes

• 1 – Ethernet communications hub with 2 AA batteries
• 1 – Ethernet cable
• 1 – 110V power plug (hub)
• 1 – Water flow sensor
• 1 – 1" valve body
• 1 – Flow-enabled actuator with 4 CR123A (3V) batteries
• 1 – Long parallel mounting adaptor (valve/actuator)
• 1 – Short perpendicular mounting adaptor (valve/actuator)
• 1 – Emergency key (valve/actuator)

Key features

• Supports up to 99 wireless devices, including multiple flow actuators
• Preset Low, Medium and High flow thresholds or customizable settings
• Configurable actions: optional automatic shut-off or notification-only
• Fault alerts and water-usage trends (daily, weekly, monthly) delivered to the RSC-900 smartphone app
• Operates on a proprietary wireless network for device communications — does not rely on local Wi‑Fi
• Manage multiple systems from a single app instance
• Cloud-based Central Monitoring Station access available for commercial multi-unit deployments
• Expandable: add extra flow sensors, point-of-contact leak sensors and rope sensors to tailor the system

Notes
This device is not a replacement for utility water meters; it is intended to manage and reduce unnecessary water consumption. Installation by a licensed plumber is recommended to ensure compliance with local codes.

Technical specifications

• Model / SKU: RSC-900-F-1
• Valve size: 1"
• Automatic shutoff: Optional (configurable actuator) — kit default: no automatic shutoff
• Sensor type: Flow sensor
• Connectivity: Proprietary wireless network for device communications (hub uses Ethernet)
• Alarm: Remote / app notifications
• Included components: Ethernet hub (with batteries), Ethernet cable, 110V hub plug, water flow sensor, 1" valve body, flow actuator (4×CR123A), mounting adaptors, emergency key
• Price (listed): 1,237 USD
