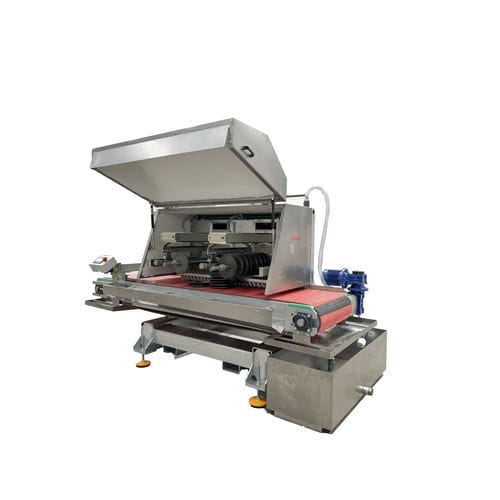

Diamond cutting machine MCE

for ceramicsfor PVCfor composites

Product overview
Double-head cutting machine MCE is an industrial multiblade saw designed for cutting construction materials such as ceramic and porcelain tiles, natural stone and stone composites. The machine uses a three-stage cutting sequence and a vibration elimination system to deliver precise, repeatable cuts in production environments. The MCE series is suited to contractors and industrial manufacturers requiring consistent finishing and high throughput.

Applications / Materials

• Ceramic and porcelain tiles
• Natural stone (marble, granite, slate)
• Stone agglomerates and composite panels
• Brick and concrete
• Glass composites

Range
The product belongs to the MCE range and is offered within the Starter Range configuration for double-head processing.

Key features and functionalities

• Three successive cutting stages for controlled distribution of cuts and constant tolerances.
• Vibration elimination system to improve cut quality and surface finish.
• Cutting disc cooling via Ø40 mm PVC cross pipe with pressure adjustment using an elastic tensioner.
• Color touchscreen for speed adjustment, motor control, manual movements and alerts.
• Soundproofing and covers in AISI-304 stainless steel with expanded polystyrene insulation and moisture-resistant coating; manual lift assisted by gas pistons.
• Chassis in 300x200x8 mm structural steel tube, hot-dip galvanized at 450°C; anti-vibration silent blocks on feet.
• Conveyor: 12 mm rectified rubber belt with type B anti-slip central belt and full-width drums for stable transport.
• Design focused on precision finishing and repeatability for industrial production.

Optionals

• Motorised up-down kit for multiblade heads
• Cleaning kit (water spray and nozzles)
• Water recovery and recirculation tank (stainless steel with electric pump)
• Ammeters for cutting motors

Notes
Configured for cutting a wide range of construction materials. Optional modules allow adaptation to specific production needs and automation levels.

Technical specifications

• Brand: MAINCER
• Model: MCE
• Type: Double-head cutting machine (multiblade)
• Intended materials: ceramic, porcelain, natural stone, stone agglomerates, brick, concrete, glass composites
• Cutting stages: up to three successive stages
• Cooling system: Ø40 mm PVC cross pipe with elastic tensioner pressure adjustment
• Control: color touchscreen for speed, motor control, manual movements and alerts
• Soundproofing & covers: AISI-304 stainless steel; expanded polystyrene insulation; moisture-resistant coating; manual lift with gas pistons
• Chassis: 300x200x8 mm structural steel tube, hot-dip galvanized at 450°C
• Feet: anti-vibration silent blocks
• Conveyor: 12 mm rectified rubber belt, type B central anti-slip belt, full-width drums
• Optional accessories: motorised elevation kit for multiblade heads, cleaning kit, water recovery/recirculation tank, ammeters for cutting motors
