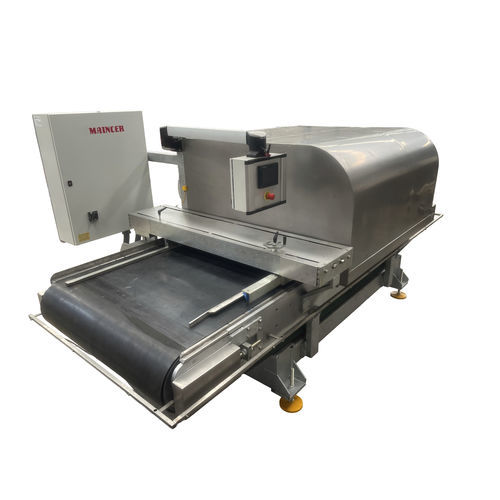

Automatic cutting machine MCN

knifefor ceramicsfor granite

Product overview
The MCN automatic cutting machine range delivers precise, vibration-minimised cuts through a two-step cutting technology and robust structural design. The line is modular with single-, double- and triple-head configurations to suit different production needs.

Range / Positioning
This product belongs to the Advanced range of MAINCER and is intended for projects requiring consistent cutting accuracy and production stability.

Applications

• Automatic cutting of building and floor materials
• Suitable for precision single-pass cuts and high-volume two- or three-stage cutting processes

Materials processed

• Ceramic and porcelanic
• Stone
• Marble
• Granite
• Brick
• Slate
• Extruded tile
• Terrazzo

Versions
The MCN is available in standard configurations to match production requirements:

• MCN single-head — single-pass precision cutting
• MCN double-head — two-stage cutting to increase throughput
• MCN triple-head — simultaneous three-step cutting for large-scale production

Formats / Cutting capabilities
Standard operation supports straight-format cuts; the machine can be customised for production-oriented formats and specific customer requirements.

Technical features (high level)
Click-enabled interactive machine points outline the main functions: cutting blades cooling system; hot-dip galvanised structural steel tubing with anti-vibration silent blocks at the base; 12 mm thick ground rubber conveyor belt with central type B belt to prevent lateral movement; colour touchscreen control; manual handwheel adjustment for pressing bars.

Specifications / technical data

• Model / denomination: MCN
• Type: Automatic cutting machine (single, double or triple head configurations)
• Cutting technology: Two-step cutting technology
• Vibrations: Design minimises/eliminates vibrations for consistent finishes
• Structure: Hot-dip galvanized structural steel tubing; base with anti-vibration silent blocks
• Conveyor belt: 12 mm rubber, ground, with central type B belt
• Cutting blades: Cooling provided for cutting blades
• Control interface: Colour touchscreen (belt speed, axis height, motor consumption)
• Pressing bars: Manual adjustment via handwheel (adjustable with safety guard lowered)
• Applications: Ceramic, porcelanic, stone, marble, granite, brick, slate, extruded tile, terrazzo
• Versions available: MCN single-head, MCN double-head, MCN triple-head
• Customization: Standard versions shown; custom versions possible on request
