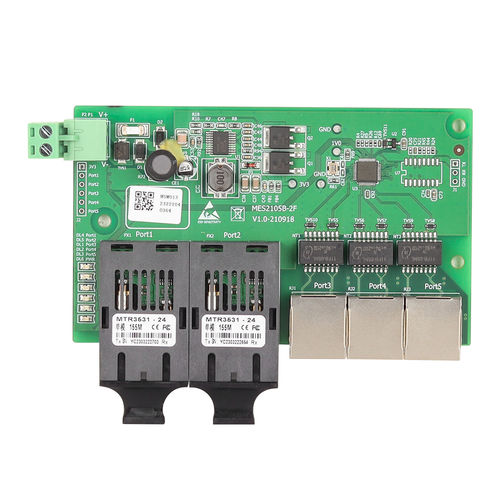

Unmanaged ethernet switch MES2105B-2F

5 ports10/100BaseT(X)layer 2

MES2105B-2F is a 5-port Layer-2 100M unmanaged embedded industrial Ethernet switch for industrial communication network applications. It meets intrinsically safe design requirements. This series of products supports 2x100M fiber ports and 3x100M copper ports. It supports DC5~32V input voltage. The power supply supports anti-reverse connection, slow start, overcurrent and overvoltage protection, and adopts embedded Installations to meet the needs of various network sites. Each 100M copper port has 10/100M adaptive function, supports full-duplex or half-duplex mode, and can automatically perform MDI/MDI-X connection, making industrial communications smoother and more efficient. The hardware adopts fanless, intrinsically safe, wide-temperature design, compact size, selected industrial-grade components, whch supports -40~+85℃ operating temperature. The power supply meets the requirements of intrinsically safe circuit design standards and has passed strict safety regulations and EMC tests to meet the application requirements of harsh industrial environments. Products can be widely used in industrial automation, integrated energy, intelligent transportation, smart cities, smart mines and other fields. Features and Benefits Support 2*100M fiber portsand 3*100M copper ports, providing users with flexible networking methods Fiber port supportsSC/FC/ST connectors, single-mode/multi-mode, wavelength, and transmission distance are optional. The copper ports support full/half duplexand auto MDI/MDI-X connections Support DC9~24V power input and complies with intrinsically safe circuit design standards Support -40℃~+85℃ operating temperature
