Unmanaged ethernet switch MES2103-F

3 port10/100BaseT(X)layer 2

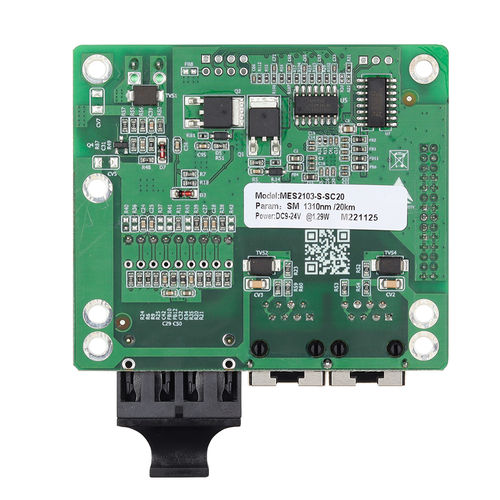

MES2103-F is a 3-port unmanaged embedded industrial Ethernet switch designed for industrial communication network applications. It complies with intrinsic safety design requirements. This product series supports 1×100Base-FX port and 2×10/100Base-T(X) ports, with single DC9~24V power input. The power supply features protection against reverse connection, soft start, overcurrent, and overvoltage protection. It is designed for embedded installation, catering to the needs of various network environments. The hardware is designed with fanless, intrinsically safe, and wide temperature range considerations. It is compact in size, uses industrial-grade components, and operates within a temperature range of -40°C to +85°C. The power supply complies with intrinsic safety circuit design standards and has undergone rigorous safety and EMC testing to meet the demanding requirements of industrial environment applications. This product can be widely applied in various fields, including industrial automation, comprehensive energy, intelligent transportation, smart cities, and intelligent mining.
