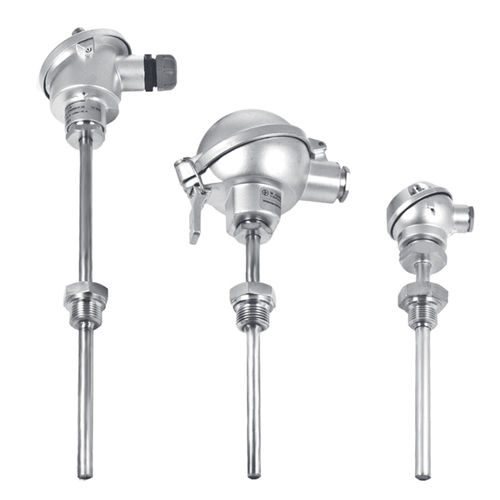

Type J thermocouple T21
type K thermocoupletype S thermocoupletype B thermocouple

type J thermocouple
type J thermocouple
type J thermocouple
Add to favorites
Compare this product


Characteristics

Technology
type K thermocouple, type J thermocouple, type S thermocouple, type B thermocouple, type R thermocouple
Mounting
insertion, form B
Protection level
IP54
Applications
process, for the food industry, for pipes
Other characteristics
stainless steel, rugged
Temperature

Max.: 1,400 °C
(2,552 °F)

Min.: -200 °C
(-328 °F)

Description

Connection head form B or A Service intended: These rugged thermometers are well suited for machine and apparatus engineering, pressure vessels and piping as well as for environments in chemical process and food industry. Connection head:per DIN 43729, form B or A, aluminium, cable entry: M20 x 1,5 mm Protection class:IP 54 per EN 60529 Connection socket:Ceramic Measuring insert tube:Inconel 600, 2.4816 Thermowell:Steel 446 / Stainless steel 316Ti or ceramics Temperature element:Thermocouple per DIN EN 60584 Fe-CuNi type (J) NiCr-Ni type (K) Pt10Rh-Pt type (S) Pt30Rh-Pt6Rh type (B) Temperature range:see Technical Details Accuracy class:Class 2 per DIN EN 60584, ± 2,5°C
