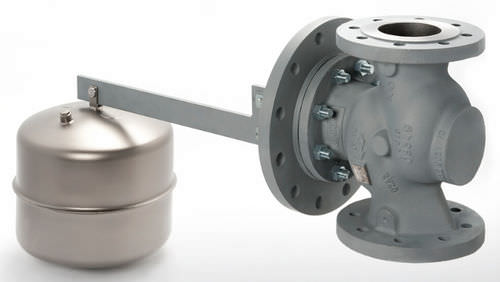

Float valve NV 56purgefor aggressive media
Add to favorites
Compare this product
Characteristics
- Operation
- float
- Function
- purge
- Other characteristics
- for aggressive media
- DN
Min.: 125 mm
(4.921 in)Max.: 400 mm
(15.748 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 40 bar
(580.2 psi)- Temperature
130 °C
(266 °F)- Flow rate
Min.: 46 m³/h
(1,624.47 ft³/h)Max.: 1,800 m³/h
(63,566.4 ft³/h)
Description
double seat, straight-way valve for feeding or draining, for large flow rates and nominal diameters | body made of GGG-40, GS-C25, CrNiMosteel | incl. float rod made of CrNiMo-steel | rubber coating or synthetic material coating available for aggressive media
Catalogs
Short Catalogue
68 Pages
