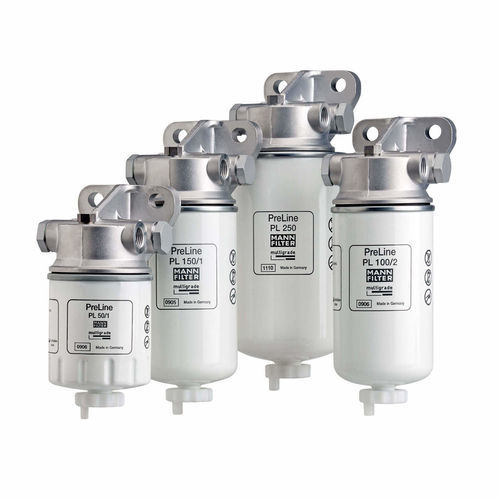

Cartridge filter unit PreLine series

with cartridgecoalescingparticulate

Product overview
Water droplets and particulate contamination directly affect injection-system components and are critical for modern common-rail systems that demand high fuel quality. MANN+HUMMEL fuel pre-filters reduce water and particle ingress before the feed pump in the low-pressure circuit, protecting downstream injection components. Inline variants are available with optimized pressure loss and high flow rates.

WAVELOCK
The WAVELOCK bayonet interface provides a quick, clean and tool-friendly connection for liquid-filter servicing, reducing downtime and contamination risk during maintenance.

PreLine Flex
The PreLine Flex product family offers a modular cartridge design that increases flexibility and simplifies inventory management. Options include multiple filter heads, a range of filter media and accessories to tailor water and particle protection to application requirements.

Product benefits

• Effective protection of injection systems against water and particles
• High-performance MULTIGRADE filter media
• Unique three-stage water separation
• High dirt-holding capacity
• Modular system for application flexibility

Technical features
Technical features | Fuel pre-filters
Volume flow range: 50 – 1200 l/h
Water separation: Up to 99 %
Initial filtration efficiency: > 40 % - 85 % @ 4 µm (c)
Service interval: 1000 h or 150.000
Operating temperature: -40 °C up to 120 °C

Technical specifications

• Volume flow range: 50 – 1200 l/h
• Water separation efficiency: Up to 99 %
• Initial filtration efficiency: > 40 % - 85 % @ 4 µm (c)
• Service interval: 1000 h or 150.000
• Operating temperature range: -40 °C up to 120 °C
• Three-stage water separation
• Modular cartridge design (PreLine / PreLine Flex)
• WAVELOCK bayonet interface for easy servicing
