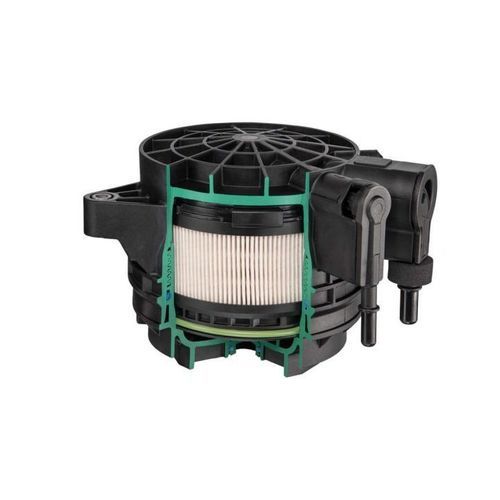

Cartridge filter unit

coalescingwith shellswith filter cartridge

Overview
Dirt particles and water droplets impair injection system components, especially modern common rail systems that require high fuel quality. MANN+HUMMEL fuel filters provide particle filtration and water separation enabling worldwide use in passenger cars, including regions with poor fuel quality. Consistently high water separation performance ensures reliable protection over the entire service life. Filters are available as spin-on units and as filter modules; MANN+HUMMEL also offers economical, high-flow inline filters.

Product benefits

• High-efficiency MULTIGRADE filter media
• Three-stage water separation
• Fast, easy and clean service

Fuel filter module

• Integration of multiple functions to meet specific customer requirements
• Integrated heating for reliable engine operation at low temperatures

Spin-on fuel filter

• Standardized design
• Quick worldwide availability
• High pulsation resistance and pressure stability

Technical features
Volume flow range: Up to 260 l/h
Water separation: > 99 %
Initial filtration efficiency: Up to 99.7 % at 4 µm
Service interval: Up to 80,000 km
Operating temperature: -40 °C – 120 °C

Technical specifications

• Volume flow range: Up to 260 l/h
• Water separation: > 99 %
• Initial filtration efficiency: Up to 99.7 % at 4 µm
• Service interval: Up to 80,000 km
• Operating temperature: -40 °C – 120 °C
