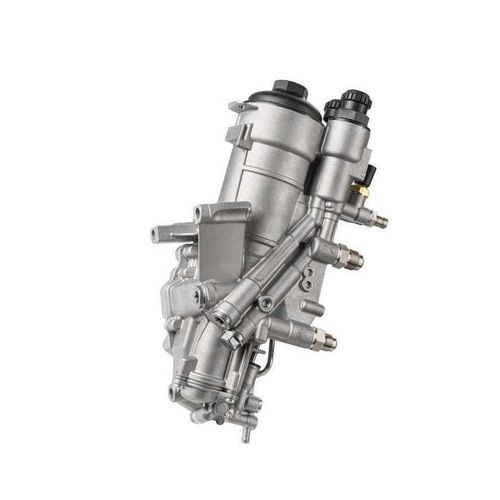

Filter unit with filter cartridge Main fuel filters

cartridgecoalescingparticulate

Overview Commercial vehicles, construction and agricultural machinery as well as industrial engines must operate reliably under demanding conditions. Variable fuel quality increases contamination risks. Fuel filters from MANN+HUMMEL protect modern diesel injection systems from particles and water droplets, ensuring clean fuel supply to the engine and extending component life.

Product types Fuel main filters from MANN+HUMMEL are available as spin-on fuel filters and as integrated filter modules. Spin-on filters offer standardized design, high pulsation resistance and pressure stability. MULTIGRADE filter media with different filtration efficiencies, sizes and service intervals can be combined with suitable filter heads to reduce system wear. Customized filter modules provide a high degree of functional integration and the WAVELOCK bayonet interface enables fast, clean and safe servicing.

Product benefits

• Efficient MULTIGRADE filter media with designed filtration grades
• Three-stage water separation for reliable moisture removal
• Easy, quick and clean servicing workflow

Fuel filter modules

• Optional integrated heating for dependable cold-start performance
• Integration of multiple functions to meet customer-specific requirements

Spin-on fuel filters

• Standardized, globally available design
• High pulsation resistance and pressure stability
• Fast replacement and straightforward logistics

Powerful details (typical integrated functions of filter modules)

• 1 Pressure sensor
• 2 Main filter with three-stage water separation
• 3 Water sensor
• 4 Water drain plug
• 5 Hand pump
• 6 Pre-filter
• 7 Recirculation valve
• 8 Overpressure valve

Technical features / table Flow range: 50 – 1200 l/h
Water separation: Up to 99 %
Initial filtration efficiency: >95 % – 99.99 % @ 4 µm (c)
Service interval: 1,000 h or 150,000 km (typical)
Operating temperature: -40 °C to 120 °C

Characteristics / technical specifications

• Applications: commercial vehicles, construction machinery, agricultural machinery, industrial engines
• Types: spin-on fuel filters and integrated filter modules
• Filter media: MULTIGRADE media with varying filtration efficiencies and service intervals
• Water separation: three-stage water separation (up to 99 %)
• Service interval (typical): 1,000 h or 150,000 km
• Operating temperature range: -40 °C to 120 °C
• Design features: high pulsation resistance, pressure stability, optional integrated heating and multifunction integration in modules
• Service interface: WAVELOCK bayonet interface for fast, clean servicing
