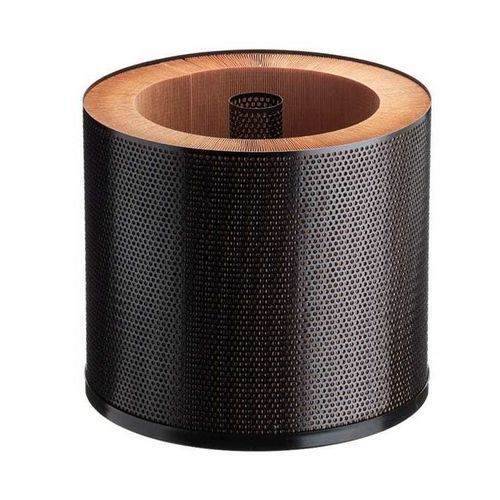

Liquid filter cartridge EDM 34er

finefor micro-filtrationsynthetic

Overview
High-performance EDM machines carry out precision operations in tool and mould making. Wear and machine downtimes increase operating costs. EDM filters from MANN+HUMMEL are tailored to application requirements and provide high dirt-holding capacity, corrosion resistance and extended service life. Filters are installed directly in the machines to reduce wear and minimise downtime.

Variants

• Good: The Baseliner
• Better: The Allrounder
• Best: The Specialist

Product benefits

• Reduced maintenance effort
• Higher cutting speeds
• Impregnation of the filter medium for high pressure and dielectric resistance
• Corrosion-resistant housings and filter elements
• Manufactured in compliance with RoHS and REACH

Technical features (table)
Technical features | Good | Better | Best
Pleat | Single bellow | W-pleat | Triple bellows or W-pleat
Medium | Cellulose | Cellulose | Synthetic
Pressure stability | 2.5 bar | 3.0 - 3.5 bar | 3.0 - 3.5 bar
Service life | + | ++ | +++
Filter fineness | 3 - 5 µm | 3 - 5 µm | 1 - 2 µm

Specifications / Technical details

• Pleat types: Single bellow (Good); W-pleat (Better); Triple bellows or W-pleat (Best)
• Filter medium: Cellulose (Good/Better); Synthetic (Best)
• Pressure stability: 2.5 bar (Good); 3.0–3.5 bar (Better & Best)
• Service life rating: + (Good); ++ (Better); +++ (Best)
• Filter fineness: 3–5 µm (Good & Better); 1–2 µm (Best)
