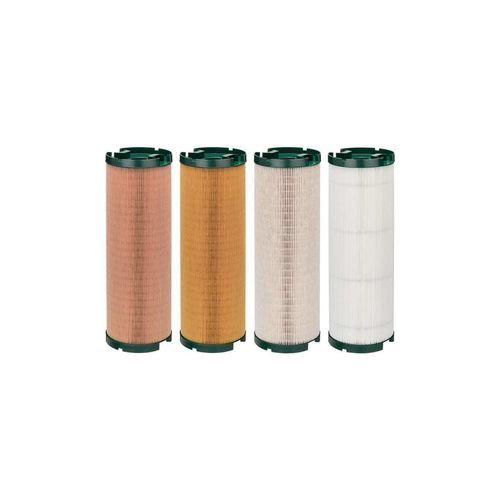

Oil filter cartridge ProFluid+ PF

for liquidsfinedepth

Product overview
Filters for tooling machines from MANN+HUMMEL are designed for use in tool and mould making, providing effective particle removal for grinding, lapping, honing, ECM and EDT/EDM processes. Available as PF 15 and PF 34 filter elements, with optional stainless steel housings for demanding environments.

Performance and durability
High dirt-holding capacity and efficient particle separation reduce contamination-related wear and rework. These filters protect hydraulic and process circuits, help maintain surface quality of workpieces and contribute to lower total cost of ownership by extending service intervals and minimising unplanned downtime.

Materials and options
ProFluid+ and other corrosion-resistant media are available to suit different fluids and pressures. Large effective filtration area enables high performance in a compact footprint. For corrosive or sanitary applications, PF elements can be installed in stainless steel housings (1.4301 / 1.4404).

Product benefits

• Impregnated filter media for high pressure and fluid compatibility
• Choice of filter media (mixed fiber, synthetic, cellulose) according to fluid and application
• Corrosion-resistant elements and optional stainless steel housings
• Long service intervals due to large filter surface area
• Manufactured in compliance with RoHS and REACH

Technical features - PF 15 / PF 34

• Maximum flow rate: PF 15 — 100 l/min per element; PF 34 — 150 l/min per element
• Optimum flow rate: PF 15 — 25 l/min per element; PF 34 — 35 l/min per element
• Maximum differential pressure: 3 bar (both models)
• Operating temperature range: 20 to 40 °C
• Typical applications: grinding, lapping, honing, ECM and EDT/EDM machines

Stainless steel housing - Technical features

• Material: stainless steel 1.4301 / 1.4404
• Operating pressure: 7 bar (at 80 °C)
• Standard flange: DN50 (DIN 2633)

Technical specifications

• Available filter media: mixed fiber, synthetic, cellulose (selection depends on fluid and application)
• PF 15 maximum flow rate: 100 l/min per element
• PF 34 maximum flow rate: 150 l/min per element
• Optimum flow rates: PF 15 = 25 l/min; PF 34 = 35 l/min
• Maximum differential pressure: 3 bar
• Operating temperature range: 20 to 40 °C
• Stainless steel housing material: 1.4301 / 1.4404
• Housing operating pressure: 7 bar (at 80 °C)
• Standard flange: DN50 (DIN 2633)
