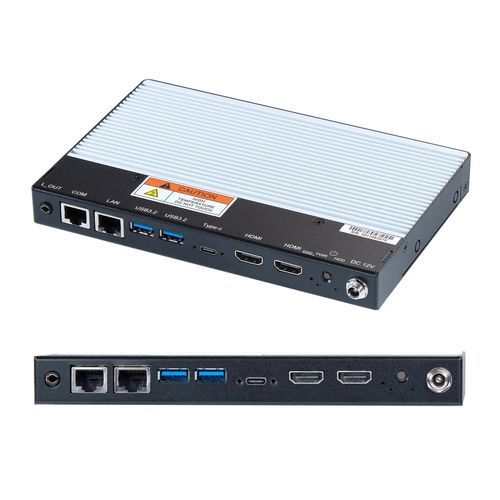

HDMI video player BPC5024A

digitalEthernetfor digital signage

Overview
The BPC5024A is a compact, fanless digital signage player engineered for reliable 24/7 operation in retail, transportation, corporate and public environments. It delivers smooth 4K multimedia playback using an Intel® Alder Lake‑N Core™ i3‑N305 processor and supports independent dual‑display output via two HDMI 2.0b ports. The unit is ruggedized for broad deployment scenarios and includes power management and display control features for unattended operation.

Key Features

• Fanless, solid‑state design for dependable 24/7 operation.
• Intel® Alder Lake‑N Core™ i3‑N305 (up to 3.80 GHz) processor for multimedia performance.
• Dual HDMI 2.0b outputs (each up to 3840 x 2160 @ 60 Hz) for independent dual‑display support.
• High‑speed DDR5 memory (SO‑DIMM) and selectable NVMe or SATA SSD storage options.
• Optional Wi‑Fi (IEEE 802.11 a/b/g/n/ac/ax) and Bluetooth 5.2 expansion kit available.
• Hardware security: TPM 2.0 (Trusted Platform Module) and Hardware Root of Trust support.
• Advanced display reliability: HDMI‑CEC, EDID emulation to maintain stable video output and prevent signal loss during hot‑swap or maintenance.
• Peripheral Device Power Control (PDPC) to manage power to connected USB peripherals and improve reliability/energy use.
• Intelligent Energy Saving Technology with scheduled power on/off and Wake on LAN (WoL) support.
• cULus listed, RoHS and CE compliance; FCC Class B.

Compatibility
Works with standard browser‑based and Windows/Linux signage CMS platforms and cloud signage services. Supports Windows and Linux operating system options, and is compatible with common signage and SCADA software packages for integration with operational dashboards.

Included in the Box

• Main BPC5024A unit (configured as ordered)
• 50 W locking DC power adapter (note: included adapter limits operating temperature range)
• Wall‑mount kit
• Documentation and regulatory statements (datasheet and quick start materials)

Maintenance & Reliability

• Watchdog timer (256 segments) for automatic recovery from unresponsive states.
• Fanless, solid‑state construction minimizes moving parts and increases MTBF in dusty or vibration‑prone environments.
• TPM and Hardware RoT supply hardware‑backed device authentication and secure storage of keys/certificates.

Technical Specifications

• Processor: Intel® Alder Lake‑N Core™ i3‑N305, up to 3.80 GHz
• System Memory: 1 x DDR5 SO‑DIMM (8 GB default, 16 GB optional)
• Storage: 1 x M.2 2280 SSD — 64 GB SATA3 (3D TLC) default; selectable NVMe 3D TLC options: 128 GB, 256 GB, 512 GB, 1 TB, 2 TB
• Graphics: Gen12 UHD Graphics (up to 32 EU)
• Security: TPM 2.0 (hardware TPM), Hardware Root of Trust
• Display Outputs: 2 x HDMI 2.0b (max 3840 x 2160 @ 60 Hz)
• EDID Emulation: Yes (prevents display dropouts and preserves resolution/settings)
• HDMI‑CEC: Yes (allows control of connected displays)
• Peripheral Device Power Control (PDPC): Yes
• Watchdog: 256 segments (0–255 sec/min options)
• Network: 1 x Gigabit Ethernet (RJ45); optional M.2 Wi‑Fi + Bluetooth expansion kit available (IEEE 802.11 a/b/g/n/ac/ax, Bluetooth 5.2)
• Audio: 1 x 3.5 mm line‑out
• Serial: 1 x RS‑232 (RJ45)
• USB: 1 x USB 2.0 Type‑A (front), 2 x USB 3.2 Type‑A (front)
• Power Input: 12 VDC ±10% via locking DC jack; typical adapter 50 W (included)
• Power Consumption: 50 W (adapter rated)
• Environmental (without included adapter): Operating −40 °C to 70 °C; with included adapter: 0 °C to 45 °C
• Storage Temperature: −40 °C to 85 °C (unit, without adapter)
• Humidity (storage): 10%–90% non‑condensing
• Mechanical: Dimensions 217 x 22.5 x 123 mm (8.54" x 0.88" x 4.84"); weight ≈ 1.0 kg (2.2 lbs); aluminum heatsink, SGCC chassis; wall‑mount kit included
• Certifications: cULus listed; CE; RoHS; FCC Class B
• Mounting: Wall/vertical mount kit included
• Operation & Management: Wake on LAN (WoL), scheduled power on/off, remote management via standard OS tools
