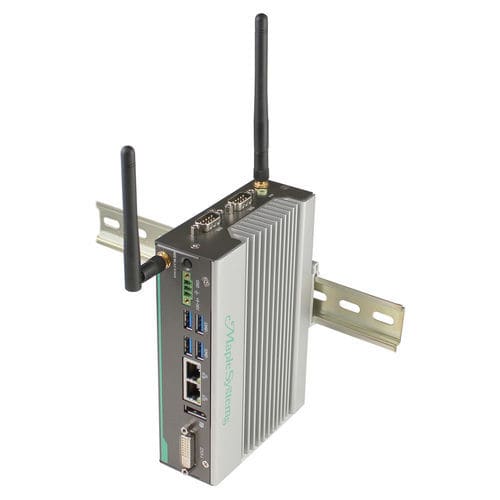

Box PC BPC2620A

embeddedAMD Ryzen™ Embedded R2314HDMI

Product Overview
This UL listed embedded Box PC is engineered for continuous operation in industrial environments, delivering reliable graphics and connectivity for control rooms, monitoring stations and digital signage. Fanless, solid‑state design supports 24/7 unattended use. Compatible with common cloud digital signage platforms such as Nimbus808, Yodeck, OptiSigns and NoviSign.

Highlights

• AMD® Ryzen™ Embedded R2314 processor (Zen+)
• Next‑Gen AMD Radeon® HD integrated GPU
• Fanless, solid‑state construction for continuous 24/7 operation
• High‑resolution multi‑display output: 4 x HDMI 2.0 (up to 4096 x 2160 @ 60Hz)
• Hardware EDID emulation for stable display detection during reboots and cable swaps
• Optional Wi‑Fi (IEEE 802.11 a/b/g/n/ac/ax) Mini PCIe kit with 2x antenna and Bluetooth 5.2
• cULus listed
• Intelligent scheduled power on/off for energy saving

Front I/O and Interfaces

• 4 x HDMI 2.0 outputs (hardware EDID emulation; supports up to 4K @ 60Hz)
• 2 x Gigabit Ethernet (Realtek RTL8111/RTL8111H series)
• 1 x RS‑232 (RJ50 COM1)
• 1 x 3.5 mm line‑out (audio)
• USB: 1 x USB 2.0 Type‑A (front), 2 x USB 3.0 Type‑A (front)
• DC jack input connector (12 VDC ±10%)
• 2 x wireless LAN antenna ports (covered unless optional Wi‑Fi kit purchased)

What's Included

• BPC2620A Series Box PC unit
• Wall mounting kit (installed)
• HDMI securing plate
• Screw kit (4 x mounting screws, 2 x HDMI securing plate screws)
• 84 W power adapter
• Warranty statement insert

Technical specifications

• CPU: AMD® Ryzen™ Embedded R2314 (Zen+)
• Memory: 1 x DDR4 260‑pin SO‑DIMM (options: 4 GB, 8 GB, 16 GB, 32 GB)
• System chipset: SoC (integrated)
• Storage: 1 x M.2 SATA 3 SSD (3D TLC); capacities: 64 GB, 128 GB, 256 GB, 512 GB, 1 TB, 2 TB
• CPU Graphics: Integrated Next‑Gen AMD Radeon® HD GPU
• Security: AMD® fTPM 2.0 (hardware RoT features)
• EDID: Hardware EDID emulation to maintain display recognition
• Watchdog timer: 256 segments (0, 1, 2…255 sec/min)
• Energy saving: Intelligent scheduled power on/off supported
• Expansion: Optional Wi‑Fi kit (IEEE802.11ax Mini PCIe card + 2x antenna, Bluetooth 5.2)
• Ethernet/LAN: 2 x Gigabit LAN (Realtek)
• Audio output: 1 x 3.5 mm line‑out
• Serial: 1 x RS‑232 (RJ50 COM1)
• USB: 1 x USB 2.0 Type‑A (front); 2 x USB 3.0 Type‑A (front)
• Power: 84 W max; Input voltage 12 VDC ±10%; Input current 7 A max
• Dimensions (W x H x D): 8.49 x 1.77 x 6.45 in (215.8 x 45.0 x 164.0 mm)
• Weight: Approx. 3.1 lbs (1.5 kg)
• Mounting: Wall mount kit included
• Construction: Silver anodized aluminum heatsink, grey steel chassis
• Operating temperature: 32° to 113°F (0° to 45°C)
• Storage temperature: -4° to 176°F (-20° to 80°C)
• Storage humidity: 10%–90% non‑condensing
• IP rating: IP30
• Certifications: CE; cULus / UL; RoHS; FCC Class B
