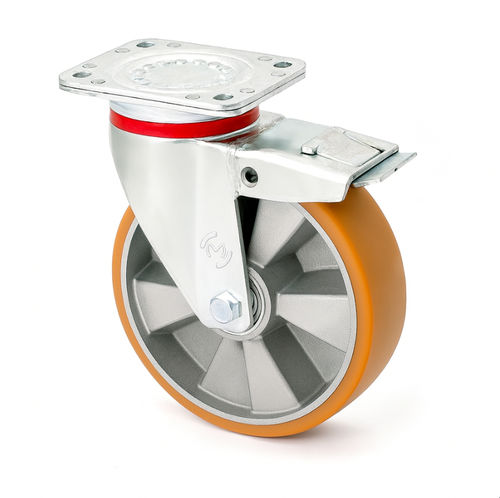

Wheel with solid tire LU/PA/125/KDS– N 350 Kgaluminumball bearingsheet
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Hub type
- ball bearing
- Applications
- plate , sheet
- Other characteristics
- non-marking
- Load capacity
Max.: 1,050 kg
(2,315 lb)Min.: 350 kg
(772 lb)- Diameter
125 mm
(4.92 in)- Tread width
40 mm
(1.57 in)
Description
"Swivel Wheel Set LU/PA/125/KDS-N – Aluminum-Polyurethane Wheel – with brake
Technical parameters:
· Bearings: ball bearings
· Plate size: 105x80 mm
· Mounting hole spacing: 80x60 mm
· Overall height: 155 mm
· Safety factor: 1.3
Exceptions!!
– Lifting and lowering the trolley with an electric truck
– Trolley pulled in an industrial train
If so, please contact our consultant for wheel selection.
Wheel: polyurethane “MARBATHANE”® tread, non-marking, high ride comfort, hardness 92° ShA, elastic, floor-friendly, resistant to abrasion, cuts and tearing, quiet running with low rolling resistance.
Housing: pressed from thick galvanized steel sheet, swivel head with double ball bearing raceway, sealed. Wheel axle bolted.
Mounting type: plate
"
