Wheel with solid tire BU/PA/100/K – 300 Kg aluminumsheetplate
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Applications
- plate , sheet
- Other characteristics
- non-marking, elastic
- Load capacity
300 kg
(661 lb)- Diameter
100 mm
(3.94 in)- Tread width
40 mm
(1.57 in)
Description

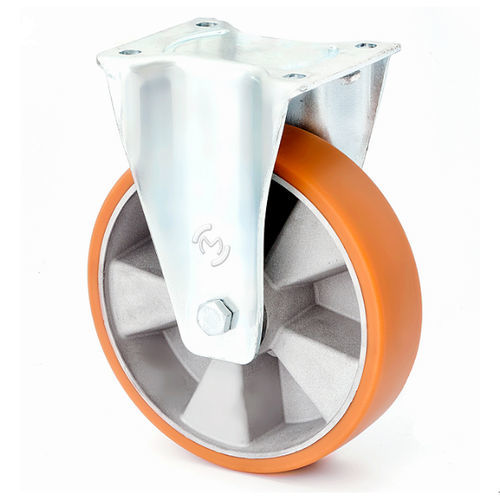

"Fixed Wheel Set BU/PA/100/K – Aluminum-Polyurethane Wheel
Technical parameters:
· Bearings: ball bearings
· Plate size: 105x80 mm
· Mounting hole spacing: 80x60 mm
· Overall height: 128 mm
· Safety factor: 1.3
· Maximum permissible load when using 4 wheels: 900 kg
· Recommended load of trolley with goods: 300–800 kg
Exceptions!!
– Lifting and lowering the trolley with an electric truck
– Trolley pulled in an industrial train
If so, please contact our consultant for wheel selection.
Wheel: wheel with polyurethane “MARBATHANE”® tread, non-marking, high ride comfort, hardness 92° ShA, elastic, floor-friendly, resistant to abrasion, cuts and tearing, quiet running with low rolling resistance.
Housing: pressed from thick galvanized steel sheet. Wheel axle bolted.
Mounting type: plate
"
