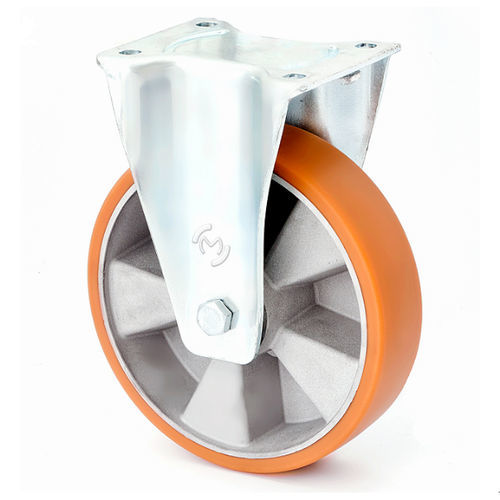

Wheel with solid tire BU/PA/160/K – 600 Kg aluminumpolyurethanesheet
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Tread material
- polyurethane
- Applications
- plate , sheet
- Other characteristics
- non-marking, elastic
- Load capacity
600 kg
(1,323 lb)- Diameter
160 mm
(6.3 in)- Tread width
50 mm
(1.97 in)
Description
"Fixed Wheel Set BU/PA/160/K – Aluminum-Polyurethane Wheel
Technical parameters:
· Bearings: ball bearings
· Plate size: 135x110 mm
· Mounting hole spacing: 105x80 mm
· Overall height: 200 mm
· Safety factor: 1.3
· Maximum permissible load when using 4 wheels: 1800 kg
· Recommended load of trolley with goods: 600–1500 kg
Exceptions!!
– Lifting and lowering the trolley with an electric truck
– Trolley pulled in an industrial train
If so, please contact our consultant for wheel selection.
Wheel: wheel with polyurethane “MARBATHANE”® tread, non-marking, high ride comfort, hardness 92° ShA, elastic, floor-friendly, resistant to abrasion, cuts and tearing, quiet running with low rolling resistance.
Housing: pressed from thick galvanized steel sheet. Wheel axle bolted.
Mounting type: plate
"
