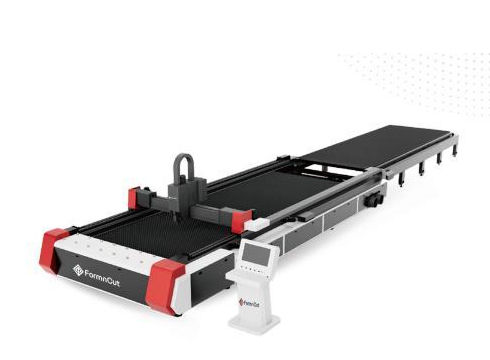

2D laser cutting and engraving machine Indrafiber laserlasersheet
Add to favorites
Compare this product
Characteristics
- Technology
- 2D laser, fiber laser, laser
- Product handled
- sheet
- Workpiece loading
- with automatic loader, automated loading/unloading, with automated loading
- Configuration
- large-format
- Other characteristics
- heavy-duty, with exchange table, fully-enclosed, high-speed, high-power
- X travel
Max.: 12,000 mm
(472.44 in)Min.: 3,000 mm
(118.11 in)- Y travel
Max.: 2,500 mm
(98.43 in)Min.: 1,500 mm
(59.06 in)- Laser power
Max.: 30,000 W
(41 hp)Min.: 1,500 W
(2 hp)
Description
Product overview
The Indra series is designed for large-scale sheet cutting, offering higher processing speeds and precision for industrial production environments. Suitable for manufacturers requiring extended cutting ranges and wide laser power options for varied materials and thicknesses.
Key features
Technical description
Heavy-duty fiber laser cutting machines configured for very large sheet sizes and high laser output. Configurations support production-level throughput and flexible layout options.
Technical specifications
The Indra series is designed for large-scale sheet cutting, offering higher processing speeds and precision for industrial production environments. Suitable for manufacturers requiring extended cutting ranges and wide laser power options for varied materials and thicknesses.
Key features
- Heavy-duty construction for continuous industrial operation
- High processing speed with precise cutting performance
- Low-maintenance design to reduce downtime
- Compact, user-friendly control panel with integrated chillers
- Optimized loading and unloading for sheet handling
- Optional enclosure and shuttle table for automated workflows
Technical description
Heavy-duty fiber laser cutting machines configured for very large sheet sizes and high laser output. Configurations support production-level throughput and flexible layout options.
- Models: IDR-3015 to IDR-1225
- Cutting ranges: 3000×1500 mm to 12000×2500 mm
- Laser output power: 1500 W to 30000 W
- Features: compact control panel, built-in chillers, optional enclosure, optional shuttle table
Technical specifications
- Series: Indra series
- Example models shown: IDR-3015, IDR-4015, IDR-6015, IDR-6020, IDR-6025, up to IDR-1225
- Typical cutting ranges: 3000×1500 mm; 4000×1500 mm; 6000×1500 mm; 6000×2000 mm; 6000×2500 mm; up to 12000×2500 mm
- Laser output power range: 1500 W – 30000 W
- Design: heavy-duty construction, low-maintenance, compact control panel with built-in chillers
- Optional equipment: enclosure, shuttle table
