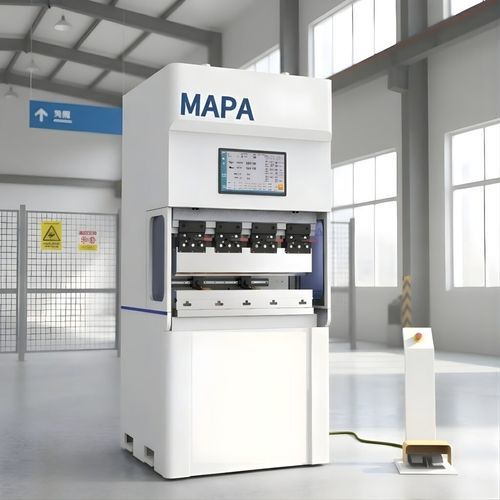

Servo-electric press brake EP series

CNC2-axishigh-speed

Product overview
The Pure Electric Press Brake is an all‑electric bending solution designed for precision sheet‑metal forming with reduced energy use and no hydraulic oil. The machine is driven by servo motors for repeatable positioning and stable operation. Compact back gauge geometry and a CNC control with 2D graphic programming enable efficient setup and intuitive operation for production environments.

Technical description

• Fully electric press brake driven by advanced servo technology.
• Imported servo motors for stable and accurate motion control.
• C5‑grade screw‑guide rails delivering high positional accuracy.
• Low idle power consumption: <0.5 kW.
• Eco‑friendly design: no hydraulic oil required.
• Compact back gauge with fast positioning and high repeatability.
• Standard X and Y axes with adjustable blocking fingers.
• CNC system supporting 2D graphic programming, simulation and multilingual UI.
• Automatic positioning via servo motors with high‑speed acceleration/deceleration algorithms.

Available models

• EP 12/600
• EP 18/800
• EP 30/1250s

Technical specifications

• Drive: Fully electric, servo motor driven (imported servo motors).
• Idle power consumption: <0.5 kW.
• Guide rails: C5‑grade screw‑guide rails.
• Y‑axis minimum movement/precision: 0.005 mm.
• Back gauge: Compact structure, fast positioning, high accuracy.
• Axes: Standard X and Y axes with adjustable blocking fingers.
• CNC features: 2D graphic programming, display, simulation, multilingual UI.
• Positioning: Automatic via servo motors with high‑speed acceleration/deceleration algorithms.
• Environment: No hydraulic oil required (eco‑friendly design).
