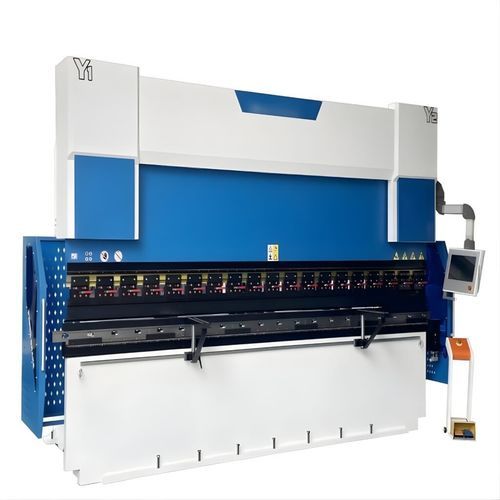

Servo-hydraulic press brake MP series

CNCautomaticprecision

Overview
The FormNCut Press Brake Machine is engineered for precision, durability and efficiency in sheet metal forming. It features a convex automatic compensation system that corrects slider deformation in real time, an all‑steel welded, stress‑relieved structure for rigidity and long service life, and advanced CNC and servo components to streamline complex bending tasks and ensure repeatable part quality.

Technical Description

• High‑precision hydraulic servo press brake with advanced CNC control and compensation system
• Convex automatic compensation system for real‑time correction of slider deformation
• All‑steel welded body, stress‑relieved by vibration or annealing for enhanced rigidity
• Linear guide rails and ball screw drives for high positioning accuracy
• CNC control system with multi‑axis programming and intuitive operation
• Advanced rear stopper mechanisms with multiple shaft control for complex back‑gauge positioning
• ANSYS‑based structural analysis for optimized frame strength and durability
• Reliable, world‑class components to reduce maintenance and ensure consistent performance

Available Models

• MP 100/3200
• MP-160/3200
• MP 200/4100

Applications
Suitable for production environments and industries requiring high‑accuracy sheet metal forming, consistent part quality and reduced maintenance needs.

Technical specifications

• Type: Hydraulic servo press brake
• Control: Advanced CNC with multi‑axis programming
• Compensation: Convex automatic compensation system
• Structure: All‑steel welded body, stress‑relieved (vibration or annealing)
• Guides & Drives: Linear guide rails; ball screw drives; servo drives
• Back gauge: Advanced rear stopper mechanisms with multiple shaft control
• Design validation: ANSYS‑based structural analysis
• Benefits: High accuracy, reduced maintenance, long service life
