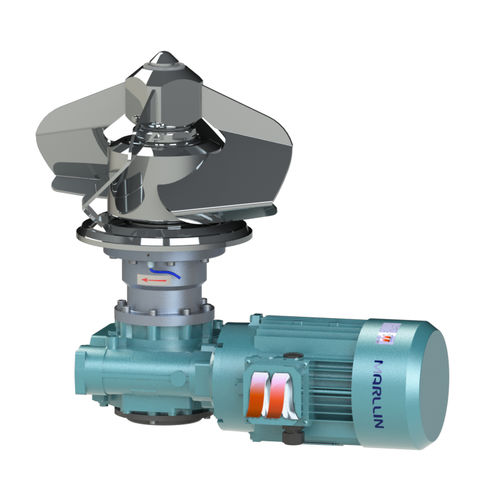

Dynamic homogenizer AGM-FC series
batchpowdervertical

dynamic homogenizer
dynamic homogenizer
dynamic homogenizer
dynamic homogenizer
dynamic homogenizer
dynamic homogenizer
Add to favorites
Compare this product


Characteristics

Technology
dynamic
Batch/continuous
batch
Product type
powder
Configuration
vertical
Applications
for the food industry, for the cosmetics industry, for the pharmaceutical industry, chemical process vessel
Other characteristics
hydraulic, bottom-entry, dissolution, with magnetic drive
Engine power

Max.: 5.5 kW
(7.48 hp)

Min.: 0.1 kW
(0.14 hp)

Capacity

Max.: 50,000 l
(13,208.6 gal)

Min.: 2 l
(0.53 gal)

Description

Historically, the AGM-FC is the precursor series for all of the brand’s magnetic drive equipment. Created in 1996, it has constantly evolved since first taken to market thanks to pertinent feedback from user customers and technological upgrades made year after year by our research and development engineers. AGM-FCs are principally used for the implementation of storage processes, maintained homogeneity, homogenisation, heat transfer and powder dissolution. Guidance, at the core of the mixing process, is handled by smooth bearings that can operate dry, depending on the option selected (AGI-Carb/AGI-Carb standard or AGI-Carb/AGI-Zir for dry operation). They can be combined with other stirrers for complex mixing processes calling for a second piece of equipment to handle dispersion or emulsion, in addition to the functions previously indicated (see AGM-FCR and AGM-FCRS). PRODUCT USED IN THE FOLLOWING MARKETS: Pharmaceuticals Food industry Cosmetics and perfumery
