Optical gauging OPTOFLASH™

Overview

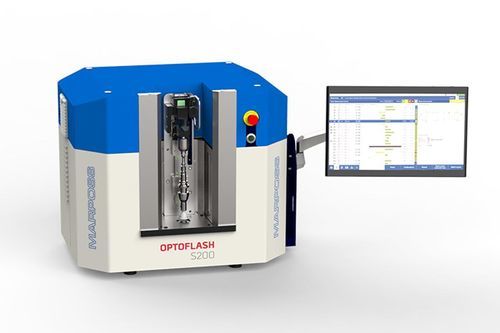

OPTOFLASH™ is an optical gauging solution based on multiple fixed 2D optical sensors. It reconstructs the 3D shape of parts to enable fast, repeatable quality controls on small shafts, fasteners, turned components and critical medical and aerospace parts.

Key features

• Measurement from multiple fixed 2D sensors stitched into a single resultant image with no discontinuities at the stitching edges.
• 3D reconstruction of part geometry derived from 2D sensor images.
• No Z-axis movements (fixed sensors), enabling very fast measurement cycles and high stability during long production runs.
• Axial measurement range up to 300 mm — world first for an optical device using multiple fixed 2D sensors.
• New, redesigned graphical user interface simplifying programming, configuration and visualization of results.

Benefits

• FAST – executes very short cycles (example: 100 static measurements in about 2 seconds).
• EASIER INSPECTION – 3D reconstruction gives clearer visualization of measured features.
• EASIER PROGRAMMING – the "Optic" software interface enables fast setup by scanning the part.
• SIMPLE OPERATION – press "Start" to run measurements in seconds.
• LOW MAINTENANCE – fixed-position optics minimize mechanical wear and preserve metrological performance over millions of cycles.

Applications

• Fasteners inspection
• Precision turned parts (turneries)
• Dental implants and dental components
• Small-size shafts and machine-tool parts
• Medical and aerospace component inspection

Notes
Detailed technical characteristics and full data are available in the product brochure(s) in the download section.

Caractéristiques / spécifications techniques

• Model name: OPTOFLASH™
• Technology: multiple fixed 2D optical sensors with image stitching and 3D reconstruction
• Axial measurement range: up to 300 mm
• Performance example: capable of performing 100 static measurements in about 2 seconds
• Motion: absence of Z-axis movements (fixed sensors) for high speed and reliability
• Software: new GUI ("Optic" interface) for easy programming, measurement setup and result visualization
• Primary application fields: fasteners, turned parts, dental implants, small shafts, machine-tool components, medical and aerospace parts
• Maintenance: minimal maintenance requirements due to absence of moving optical axes
