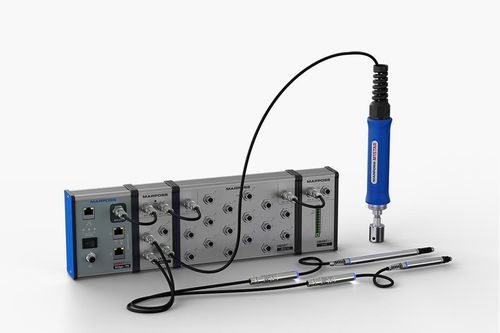

Diameter measurement system SmartNet

positiondistancelength

Product overview
SmartNet is a modular measurement acquisition network designed for industrial applications. The system automatically configures connected sensors and centralizes measurement acquisition for integration with PLCs and PCs via Ethernet and Fieldbus.

Compatible sensors

• Pencil probes
• Plug gauges
• Measuring cells
• QuickBlocks
• Other Marposs sensors with SMART connector

Key features

• Modular architecture for flexible sensor layouts
• Automatic sensor recognition and configuration
• SMART connector with on-board digitization and linearization
• Bi-colour 360° LED for immediate status feedback
• Push-pull connector for tool-free connections
• Ethernet and Ethernet+Fieldbus options (e.g., ProfiNet)

Benefits

• Reduced setup time through automatic configuration
• Synchronized measurements across the network
• High-resolution acquisition suitable for precision applications
• Scalable up to 250 sensors per network
• Easy integration with PLCs and third-party systems

Technical specifications

• Up to 250 sensors per network
• Sensor cable options: 20 cm and 2 m
• Up to 32,000 synchronized measurements/s per measuring point (with 40 points connected); 15,000 with 100 sensors
• Up to 1.5 million measurements/s on the communication bus
• 360° visible LED on SMART connector
