Length measurement stand QUICK SET™ LINE

diameter

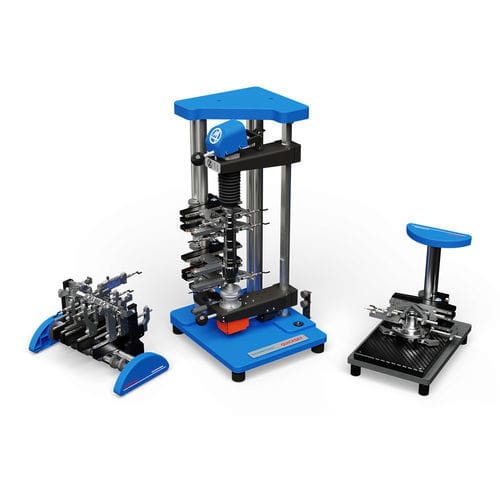

Quick Set is a modular measurement system consisting of standard and therefore easy to configure parts. It is designed for multi-dimensional and geometric checks of various types of parts (shafts, flanged parts, bushings, bearing rings, hubs, etc.). The various accessories available for supporting the part allow for static and dynamic checks. Quick Set is a modular measurement system for multi-dimensional and geometric checks. It can be assembled in various configurations based on the part being checked. Its architecture, designed to ensure a correct mechanical setup without any indicators or display units, allows for an easy reconfiguration and expansion of the bench as the type of part being checked changes. The stiffness and accurate positioning of the measurement units is guaranteed by the 30 mm stainless steel bar system. The narrow 12 mm width of the parts allows for a wide range of measuring sections in a small area of the part. The various accessories available for supporting the part allow for static and dynamic checks. For the measurements it can be used with any instrument with a clamping diameter of 8 mm or 3/8’’, such as measuring probes and digital displays • easy to install • quick configuration when changing the part being measured, without any special tools • reliable and sturdy • the use of standard components ensures quick deliveries • suitable for workshop use • guarantees coherent quality of the machined parts and reduced costs • allows for inter-operational checks, even of small batches, reducing the number of rejects
