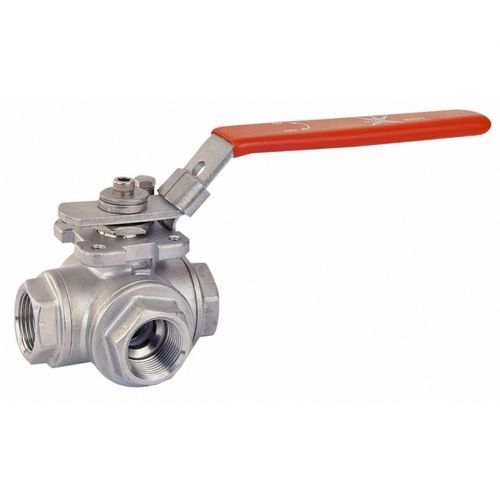

Multi-purpose diverter valve

for chemical productsmulti-channel3-way

Product overview
A three-way ball valve for flow diversion and mixing in industrial process systems. Available in L-port and T-port ball configurations to select flow paths. CF8M stainless steel or WCB body, PTFE or RTFE seats, and a blow-out proof stem. Lockable lever handle and direct-mount actuator interface options available.

Specifications

• Design: 3-way
• Port: L-port / T-port
• Size range: 1/4" to 4"
• Maximum pressure: 1000 PSI
• Body materials: CF8M (stainless steel) or WCB (carbon steel)
• Seat materials: PTFE or RTFE
• End connections: NPT, BSP, Flanged
• Operating temperature: -20°C to +180°C
• Stem: blow-out proof

Features

• L-port and T-port configurations
• Flow diversion and mixing capabilities
• Blow-out proof stem for operator safety
• Lockable lever handle
• Direct-mount actuator option

Applications

• Flow diversion
• Flow mixing
• Bypass systems
• Process control lines
• Chemical processing

Technical specifications

• Design: 3-way multi-port ball valve
• Port options: L-port, T-port
• Sizes: 1/4"–4"
• Pressure rating: up to 1000 PSI
• Body: CF8M or WCB
• Seats: PTFE or RTFE
• Ends: NPT / BSP / Flanged
• Temperature range: -20°C to +180°C
• Stem: blow-out proof; handle: lockable; direct-mount available
