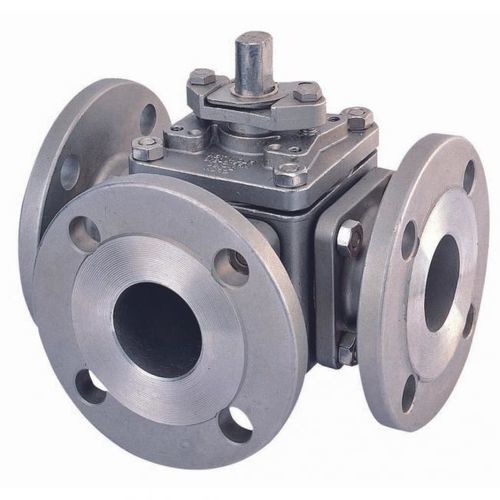

Multi-purpose diverter valve V33 series

for chemicals3-way4-way

Overview
A compact multi-port ball valve available in 3-, 4- and 5-way configurations for routing and isolating multiple process lines. CF8M stainless steel body with interchangeable port arrangements to match process requirements and piping standards.

Specifications
Design: 3/4/5-way
Port type: Multi-port
Size range: 1/4" to 2"
Pressure rating: up to 1000 PSI
Body material: CF8M (stainless steel)
Seat materials: PTFE / RTFE
End connections: NPT, BSP, BSPT
Operating temperature: -20°C to +180°C

Features

• Available in 3-, 4- and 5-way configurations
• Multiple port arrangements for custom flow paths
• Compact, space-saving design
• Blow-out proof stem for safe maintenance
• Quarter-turn operation for fast switching

Applications

• Complex flow routing and diverter systems
• Sampling manifolds and sampling systems
• Instrumentation and control panels
• Process automation and pilot systems
• Chemical and petrochemical processing

Technical specifications

• Design: 3/4/5-way
• Port: Multi-port
• Size: 1/4" to 2"
• Maximum pressure: 1000 PSI
• Body: CF8M (stainless steel)
• Seats: PTFE / RTFE
• End connections: NPT, BSP, BSPT
• Temperature range: -20°C to +180°C
• Stem: blow-out proof
• Operation: quarter-turn
