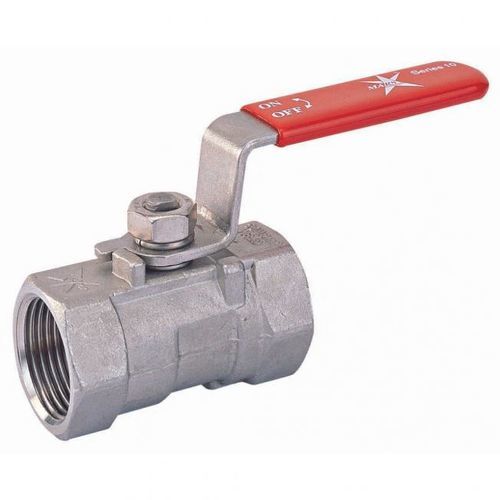

Ball valve V10 series

manualthreadedlockable

Product overview
A complete range of non-maintainable 1-piece reduced-bore ball valves in CF8M stainless steel. Economical, compact and reliable with blow-out proof stems, insulated grips and lockable lever handles. Investment cast with low torque for safe operation across general and industrial chemical applications.

Specifications
Design: 1-piece
Port: Reduced
Size: 1/8" ~ 2"
Pressure Rating: Up to 2000 PSI
Body: CF8M / WCB
Seats: PTFE / RTFE / TFM1600
Ends: NPT, BSP, BSPT
Temperature Range: -20°C to +180°C

Features

• Reduced port
• Blow-out proof stem
• Lockable lever handle
• Insulated grip
• Investment cast low torque
• Direct mount options available
• Fire safe variants available

Applications

• Drain and blow down
• Gauge isolation
• Test points
• General industrial
• Chemical processing
• Process automation

Technical specifications

• Design: 1-piece
• Port: Reduced
• Size range: 1/8" to 2"
• Pressure Rating: Up to 2000 PSI
• Body materials: CF8M / WCB
• Seat materials: PTFE / RTFE / TFM1600
• End connections: NPT, BSP, BSPT
• Temperature Range: -20°C to +180°C
• Key features: blow-out proof stem, lockable lever handle, insulated grip, investment cast low torque, direct mount options, fire safe variants
