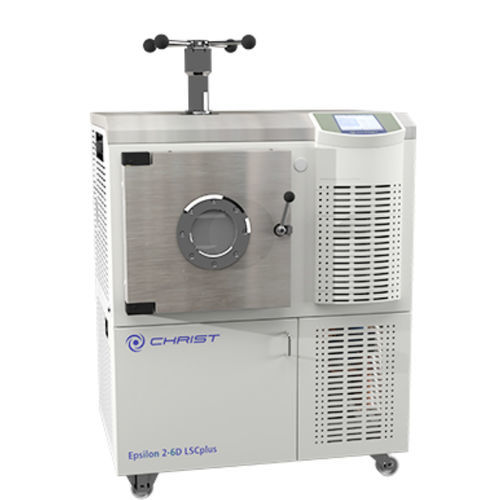

Process freeze dryer Epsilon 2-6D Solvent

pilotstainless steel

psilon 2-6D Solvent is specifically designed for the freeze drying of solvents. The parts in contact with liquids and vapours have been chosen with extreme care to ensure a reliable and sustainable freeze drying process. The unit features a solvent-resistant and sturdy stainless steel door with a glass window. The vacuum is produced by an oil-free scroll pump with ATEX explosion protection certification as standard. The solvent package is a reliable solution for demanding drying requirements with highly concentrated solvents, such as 100% acetonitrile, 100% dioxane or 60% tert-butanol. Technical data Ice condenser capacity: - 6 kg Ice condenser temperature: - –88 °C Shelf dimensions: - 225 x 300 mm (W x D) Number of shelves: - 3 Shelf area: - 0,21 m2 Shelf spacing: - Shelf temperature: - –50 °C bis zu +60 °C GWP Index: - ≤ 6 Shelf temperature accuracy: - max. ±1 °C Cooling systems: - 2 independent systems, air cooled Ice condenser cooling system: - 2 compressors, 0.6 kW each, in cascade configuration Shelf cooling system: - 1 compressor, 0,6 kW Unit dimensions: - 1267 x 860 x 650 mm (H x W x D)
