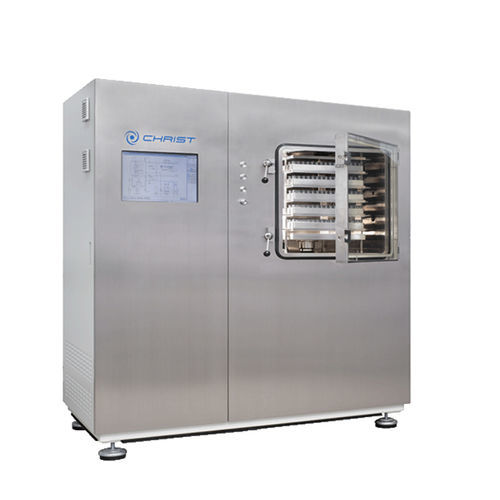

Pilot freeze dryer Epsilon 2-18D LSCplus

The Epsilon 2-18D LSCplus pilot freeze dryer was specially developed for the requirements of research, development, and small-scale production. With its optimized shelf space, the freeze drying system offers ideal conditions for drying nested vials and trays with protective containers such as LyoGuard or Lyoprotect. Martin Christ's proven two-chamber principle integrates the ice condenser directly below the drying chamber. This arrangement enables optimal flow conditions for the water vapor and ensures uniform, reproducible drying with maximum process reliability. The Epsilon 2-18D LSCplus freeze dryer can be used, for example, to dry bacterial cultures, viruses, blood plasma, serum fractions, antibodies, vaccines, drugs such as chloramphenicol, streptomycin, vitamins, biomass, and plant extracts for biochemical tests. Technical data Ice condenser capacity: - 18 kg Ice condenser temperature: - –75 °C Shelf dimensions: - 540 × 400 mm (W × D) Number of shelves: - 1 to 7 Shelf area: - 0.22 m2 to 1.51 m2 Shelf spacing: - 481 mm to 55 mm Shelf temperature: - –60 °C to +50 °C Shelf temperature accuracy: - max. ±1 °C Cooling systems: - Independent systems, water cooled Ice condenser cooling system: - 4 kW compressor Unit dimensions: - According to customer-specific requirements (URS)
