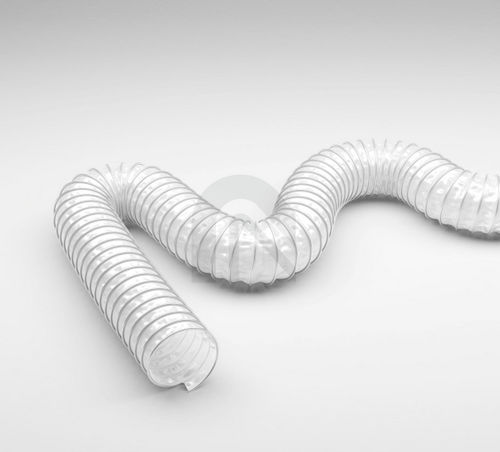

Air hose Master-Clip PEfabricpolyethylene (PE)cleaning
Add to favorites
Compare this product
Characteristics
- Use
- for air
- Material
- fabric, polyethylene (PE)
- Applications
- cleaning, for chemical applications, air conditioning, exhaust, low-pressure, for ventilation, for the steel industry
- Other characteristics
- flexible, lightweight, microbe-resistant, hydrolysis-resistant, vacuum, heat/cold-resistant, halogen-free, transparent, small bend radius, spiral wire
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 0.93 Pa
(0 psi)Min.: 0.016 Pa
(0 psi)- Temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description
Suction & Blower Hose made from PE-coated PE fabric, environmentally friendly
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - coated on both sides, PE coating
Properties
Chemical Properties - halogen-free, plasticiser-free
Mechanical Properties - compressible approx. 1:6
Pressure Resistance - moderately pressure resistant
Colour - white
Other - Environmentally friendly alternative to PVC hoses, good vacuum resistance
short-term maximum temperature - peaks to +95° C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Industry, Ventilation & air-conditioning, Chemistry, Waste disposal & cleaning technology, Metal & Toolmaking
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
