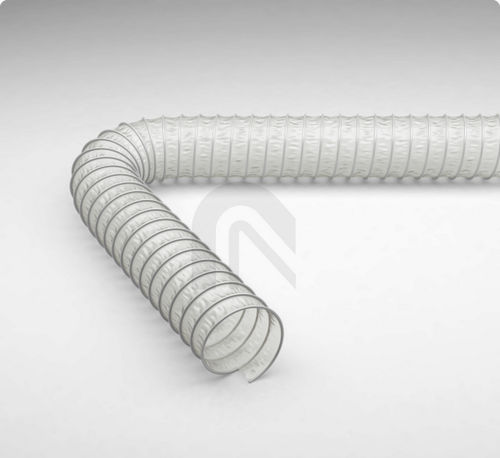

Bulk material hose Master-Clip PUR-Sfor oilPUsuction
Add to favorites
Compare this product
Characteristics
- Use
- for bulk materials, for oil
- Material
- PU
- Applications
- suction, construction, for chemical applications, for food industry applications, air conditioning, exhaust, for pharmaceutical applications, for agricultural applications, for the plastics industry
- Other characteristics
- flexible, abrasion-resistant, lightweight, oil-resistant, transparent, double-layer, for abrasive products, small bend radius, double-walled, spiral wire
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 0.6 bar
(8.702 psi)Min.: 0.01 bar
(0.145 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description
Suction & Blower Hose made from PU film/foil, extremely abrasion-proof, double-layered
Type of construction - Spiral hose with clamping profile
Design of the helix - metal band, formed as a clamping profile
Material of the helix - Steel strip, hot-dip galvanised
Design of the external spiral - designed as an additional protective profile
Execution of the wall - made of pure material, double-layered
Properties
Chemical Properties - good resistance to oil vapours, good resistance to petrol vapours, plasticiser-free
Mechanical Properties - compressible approx. 1:6
Physical Properties - cold-resistant
Pressure Resistance - moderately pressure resistant
Other - increased abrasion resistance due to double-layered wall, good recovery properties
short-term maximum temperature - peaks to +125° C
Delivery Information
Delivery, type of production - Order-related production
Application Areas
Areas of application - Agriculture, Bulk & Construction, Chemistry, Surface Technology, Food & Pharma, Plastics
Customizing Options
optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
