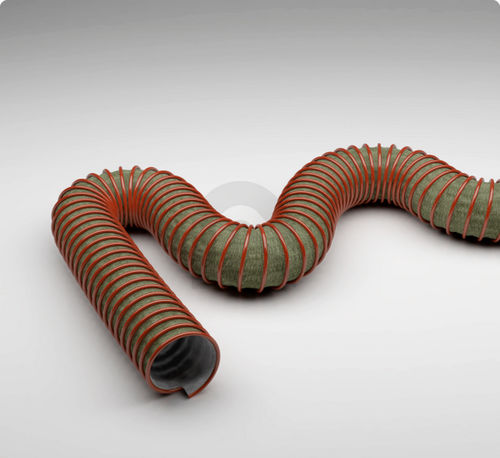

Exhaust gas hose Carflex 300

fabrichigh-temperatureair conditioning

Exhaust gas hose for exhaust fumes up to +300°C Type of construction - Spiral hose with clamping profile Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - made of plastic, designed as an additional protective profile Properties Mechanical Properties - compressible approx. 1:5 Pressure Resistance - moderately pressure resistant Colour - inside silver-grey, outside green-grey, scuff protection profile red Other - abrasion-resistant against soot particles from diesel exhaust gases short-term maximum temperature - peaks to +300° C flue gas temperature, for proper use flue gas funnels are required and a sufficient supply of fresh air (approx. 50% based on the maximum specified temperature) Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Ventilation & air-conditioning Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
