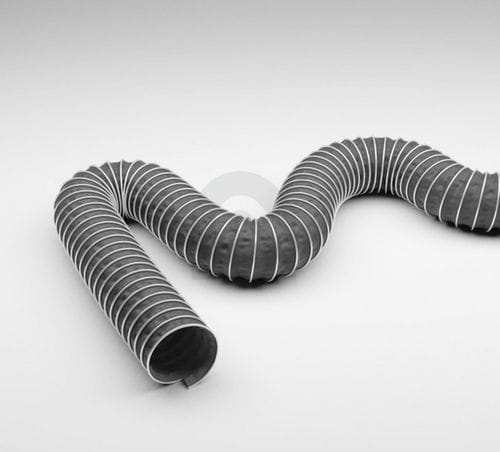

Exhaust gas hose Master-Clip HT 300

fabricfor pharmaceutical applicationshigh-temperature

Medium and high temperature hose up to +300°C, silicon-free, highly flexible Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - made of specified material, coated Material of the wall - Glass fibre fabric Specifications of the wall - Material is UV-resistant according to ISO EN 105 B02, flame retardant Properties Chemical Properties - silicone-free, hydrolysis resistant, good ozone resistance Mechanical Properties - compressible approx. 1:6 Physical Properties - self-extinguishing Pressure Resistance - moderately pressure resistant Other - No outgassing during commissioning short-term maximum temperature - peaks to 300° C (peaks to +350° C) for vacuum applications Application Areas Areas of application - Automotive, Plant & Mechanical Engineering, Aerospace technology, Ventilation & air-conditioning, Sea & rail transport, Food & Pharma, Printing & Paper, Vehicle construction Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
