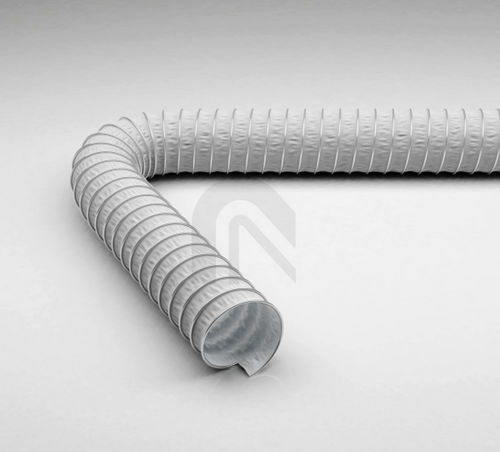

Air hose Master-Clip ISO
fiberglasssiliconehigh-temperature

air hose
air hose
air hose
Add to favorites
Compare this product

Go to the Masterflex SE website for more information

Characteristics

Use
for air
Material
silicone, fiberglass
Applications
high-temperature, low-pressure, medium-temperature
Other characteristics
lightweight, UV-resistant, heat/cold-resistant, vibration-resistant, small bend radius, silicone-coated, double-walled
Inner diameter

Max.: 900 mm
(35.433 in)

Min.: 50 mm
(1.969 in)

Pressure

Max.: 0.85 bar
(12.328 psi)

Min.: 0.009 bar
(0.131 psi)

Temperature

Max.: 300 °C
(572 °F)

Min.: -60 °C
(-76 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Medium and high temperature hose for temperatures up to +300°C Type of construction - Spiral hose with clamping profile Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Design of the inner layer - heat-resistant impregnation Material of the inner layer - glass fabric Execution of the external layer - Coating in silicone Material of the outer layer - glass fabric Properties Chemical Properties - good UV resistance, good ozone resistance Mechanical Properties - compressible approx. 1:4 Pressure Resistance - moderately pressure resistant Colour - silver grey short-term maximum temperature - peaks to +350° C Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Aerospace technology, Ventilation & air-conditioning, Sea & rail transport, Vehicle construction Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
