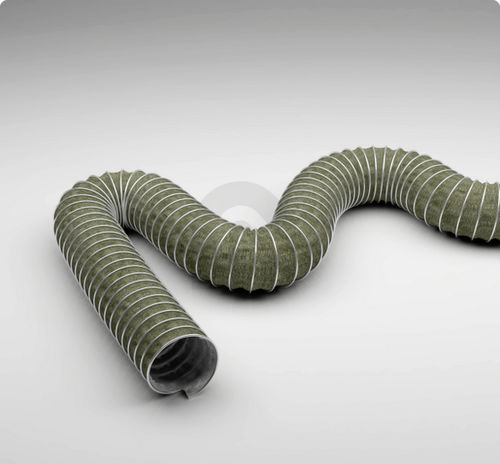

Fume extraction hose Master-Clip CAR

for exhaust gasfor hot airgalvanized steel

Medium and high temperature hose for temperatures up to +300°C Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - coated, Coating with heat stabilisers Material of the wall - High temperature fabric Properties Chemical Properties - good resistance to chemicals, weather-resistant Mechanical Properties - compressible approx. 1:6 Pressure Resistance - moderately pressure resistant Colour - silver-grey inside, green-grey outside short-term maximum temperature - peaks to +300° C exhaust gas temperature (peaks to +350° C), for proper use exhaust gas funnels are required and a sufficient supply of fresh air (approx. 50% related to the maximum specified temperature) Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Automotive, Industry, Aerospace technology, Ventilation & air-conditioning, Sea & rail transport, Food & Pharma, Printing & Paper, Vehicle construction, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
