Hydraulic flange spreader HSW15TEXHPBEX Twin

ATEX

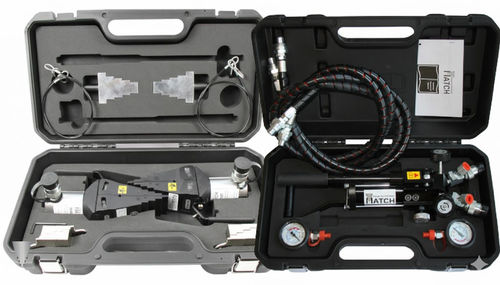

Hydraulic Flange Spreader HSW15TEX with spreading force 15,5 t (155 kN) is actuated by an external hand pump. These tools are used in common installation, commissioning and maintenance processes, such as the replacements of valves and gaskets. A minimum opening of 6 mm is required to insert the tools.  It is ATEX certified for use in the hazardous areas in zones 1 and 2 (without PU Case) *Please note the difference between ATEX and non-ATEX rated Kits and Components. HP350BEX Hydraulic Oil-tight Hand Pump - Hose KIT ATEX Double Connection Oil-tight hydraulic hand pumps ATEX Kit from MATCH are specially designed to operate in all orientations without loss of performance. Can be used with all 700 bar tools within their oil capacity specification, e.g. HSW15TEX Single Kit or HSW15TEX Twin Kit. Each pump kit incl. pressure gauge, adapter, coupling and oil-filled 1.80m HHEX hydraulic hose with couplings. ATEX-certified kit for use in Zone 1 and 2 hazardous areas (without PU case) Kit includes: BOX A 2 x HSW15TEX Hydraulic Flange Spreader with Hydraulic Cylinder 700bar 2 x Safety Block & Lanyard 2 x Pair of Stepped Blocks 1 x Carry Case Tool Only Weight (KG) 7,0 BOX B 1 x P350BEX single pump 700 bar, 0.35L oil capacity 2 x pressure gauge 0-1,000 bar + coupling 1/4″ 2 x pressure gauge adapter with coupling 3/8″ 2 x Hydraulic hose HHEX180 1 x Carry case Tool Only Weight (KG) 6.1 Gross Kit Weight 20,80 + 11,70 = 32,50 kg This device features the following ATEX classification II 2G ck IIB T6 / II 2D ck T85°C.
