Hydraulic flange spreader HSW15TEX Twin

ATEX

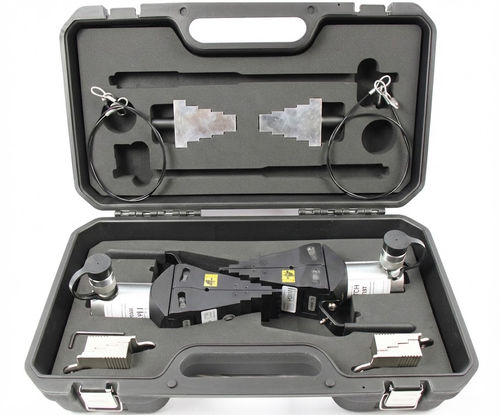

Hydraulic Flange Spreader HSW15TEX with spreading force 15,5 t (155 kN) is actuated by an external hand pump. These tools are used in common installation, commissioning and maintenance processes, such as the replacements of valves and gaskets. A minimum opening of 6 mm is required to insert the tools. The HSW15TEX is actuated via an external hydraulic pump. Please note that neither the HSW15TEX Single Kit nor the HSW15TEX Twin Kit include a hydraulic hand pump or hydraulic hoses. MATCH recommend Pump Kit HP350AEX for HSW15TEX Single Kit and Pump Kit HP350BEX for HSW15TEX Twin Kit. It is ATEX certified for use in the hazardous areas in zones 1 and 2 (without PU Case) *Please note the difference between ATEX and non-ATEX rated Kits and Components. Tool Capabilities: SPREADING FORCE with 700bar hydraulic pressure applied: ▪ 15.5T (155kN) SPREADING DISTANCE ▪ 6.0mm - 31.0mm st using only 1st step ▪ 6.0mm - 62.0mm using 4 steps (without stepped blocks) ▪ 31.0mm - 81.0mm using optional stepped blocks kit Kit includes: 2 x HSW15TEX Hydraulic Flange Spreader with Hydraulic Cylinder 700bar 2 x Safety Block & Lanyard 2 x Pair of Stepped Blocks 1 x Carry Case Tool Only Weight (KG) 7,0 Gross Kit Weight (KG) 20,8 This device features the following ATEX classification II 2G ck IIB T6 / II 2D ck T85°C.
