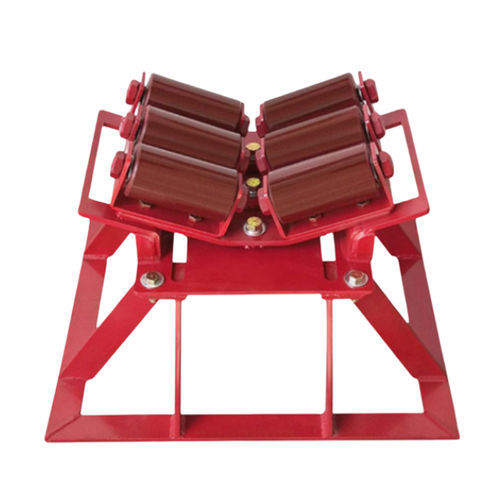

Beam launcher 21 series

Product Overview
Mathey Dearman pipe launchers convert quickly between a pipe-rack clamping roller and a pipeline launcher using fully compatible parts. The clamping system secures the roller to an I‑beam from both flange sides, enabling safe pipe installation and fabrication in pipe racks and confined areas. Rollers can also be mounted to stands configured for pipeline work and directional drilling.

Availability
ONLY STOCKED IN AMERICAS

Features and Advantages

• Replaceable urethane roller wheels — unboltable in seconds for fast maintenance.
• Ergonomic carry handles for safe transport and positioning.
• Modular conversion between pipe launcher and beam roller configurations.
• Compact nesting and stacking for economical shipping and storage.
• Modular design simplifies part replacement and upgrades.
• Option to add wheels to upgrade standard capacity to heavy‑duty capacity.
• Pipe capacity range from 2" to 60" (50.8–1524 mm).
• Load capacity up to 20,000 lb (9,070 kg) depending on model.

Specifications (table)
PART NO. | DESCRIPTION | PIPE CAPACITY | LOAD CAPACITY | SHIPPING WEIGHT | DIMENSIONS L x W x H1 – H2
2115 | Pipe Launcher (two rollers) | 2 – 24" / 50.8 – 609.6 mm | 2,500 lbs / 1,100 kg | 89 lbs / 40.4 kg | 23 x 26 x 18" / 584.2 x 660.4 x 457.2 mm
2115HD | Pipe Launcher HD (six rollers) | 2 – 24" / 50.8 – 609.6 mm | 7,500 lbs / 3,400 kg | 126 lbs / 57.2 kg | 23 x 26 x 18" / 584.2 x 660.4 x 457.2 mm
2126 | Pipe Launcher (two rollers) | 4 – 48" / 101.6 – 1,219.2 mm | 10,000 lbs / 4,540 kg | 162 lbs / 73.5 kg | 30 x 36 x 19" / 762 x 914.4 x 482.6 mm
2126HD | Pipe Launcher HD (six rollers) | 4 – 48" / 101.6 – 1,219.2 mm | 20,000 lbs / 9,070 kg | 213 lbs / 96.6 kg | 30 x 36 x 19" / 762 x 914.4 x 482.6 mm
2136 | Pipe Launcher (two rollers) | 16 – 60" / 406.4 – 1,524 mm | 10,000 lbs / 4,540 kg | 178 lbs / 80.7 kg | 30 x 36 x 19" / 762 x 914.4 x 482.6 mm
2136HD | Pipe Launcher HD (six rollers) | 16 – 60" / 406.4 – 1,524 mm | 20,000 lbs / 9,070 kg | 229 lbs / 103.9 kg | 30 x 36 x 19" / 762 x 914.4 x 482.6 mm

Characteristics / Technical specifications

• 2115 — Description: Pipe Launcher (two rollers); Pipe capacity: 2 – 24" / 50.8 – 609.6 mm; Load capacity: 2,500 lbs / 1,100 kg; Shipping weight: 89 lbs / 40.4 kg; Dimensions: 23 x 26 x 18" / 584.2 x 660.4 x 457.2 mm.
• 2115HD — Description: Pipe Launcher HD (six rollers); Pipe capacity: 2 – 24" / 50.8 – 609.6 mm; Load capacity: 7,500 lbs / 3,400 kg; Shipping weight: 126 lbs / 57.2 kg; Dimensions: 23 x 26 x 18" / 584.2 x 660.4 x 457.2 mm.
• 2126 — Description: Pipe Launcher (two rollers); Pipe capacity: 4 – 48" / 101.6 – 1,219.2 mm; Load capacity: 10,000 lbs / 4,540 kg; Shipping weight: 162 lbs / 73.5 kg; Dimensions: 30 x 36 x 19" / 762 x 914.4 x 482.6 mm.
• 2126HD — Description: Pipe Launcher HD (six rollers); Pipe capacity: 4 – 48" / 101.6 – 1,219.2 mm; Load capacity: 20,000 lbs / 9,070 kg; Shipping weight: 213 lbs / 96.6 kg; Dimensions: 30 x 36 x 19" / 762 x 914.4 x 482.6 mm.
• 2136 — Description: Pipe Launcher (two rollers); Pipe capacity: 16 – 60" / 406.4 – 1,524 mm; Load capacity: 10,000 lbs / 4,540 kg; Shipping weight: 178 lbs / 80.7 kg; Dimensions: 30 x 36 x 19" / 762 x 914.4 x 482.6 mm.
• 2136HD — Description: Pipe Launcher HD (six rollers); Pipe capacity: 16 – 60" / 406.4 – 1,524 mm; Load capacity: 20,000 lbs / 9,070 kg; Shipping weight: 229 lbs / 103.9 kg; Dimensions: 30 x 36 x 19" / 762 x 914.4 x 482.6 mm.
