Round sling 200 serieswire roperollermetal
Add to favorites
Compare this product
Characteristics
- Type
- round, wire rope, roller
- Material
- metal, urethane
- Other characteristics
- pipe
- Load capacity
1,300 kg, 7,710 kg, 12,700 kg, 12,813 kg, 25,700 kg
(2,866 lb, 16,997.6 lb, 27,998.7 lb, 28,247.8 lb, 56,658.8 lb)
Description
Overview

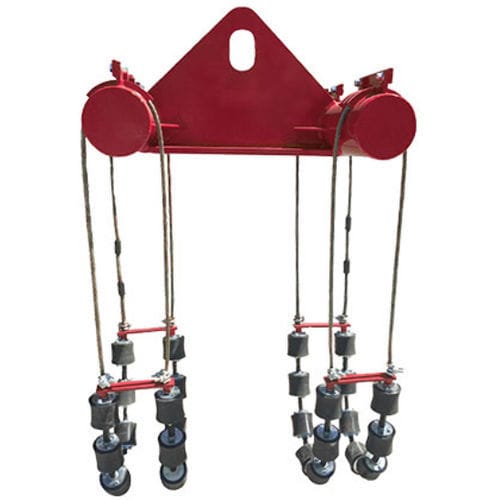

Mathey Dearman’s Pipe Slings and Cradles provide a secure method to move and position pipe for pipeline installation projects. Models cover pipe diameters from 2–36" (50.8–914 mm) and feature 4" urethane "round cut" wheels with sealed anti-friction bearings. All spreader bar designs are third-party tested and compliant with industry standards. Models use 5/8" wire rope; all rope assemblies are swedged and certified.
Availability
ONLY STOCKED IN AMERICAS
Features and advantages
Part numbers and specifications
PART NO. | DESCRIPTION | LOAD CAPACITY | SHIPPING WEIGHT | DIMENSIONS L x W x H
2001-3 | Pipe Sling for 2–8" pipe – 3 rollers | 2,900 lbs / 1,300 kg | 50 lbs / 22.70 kg | 16 x 16 x 16" / 406.4 x 406.4 x 406 mm
2001-4 | Pipe Sling for 2–12" pipe – 4 rollers | 2,900 lbs / 1,300 kg | 60 lbs / 27.20 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2001-5 | Pipe Sling for 2–18" pipe – 5 rollers | 2,900 lbs / 1,300 kg | 70 lbs / 31.80 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2001-7 | Pipe Sling for 2–24" pipe – 7 rollers | 2,900 lbs / 1,300 kg | 85 lbs / 38.60 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2002 | Pipe Cradle for 6–12" pipe. 2 strand | 17,000 lbs / 7,710 kg | 200 lbs / 90.70 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2003 | Pipe Cradle for 12–24" pipe. 2 strand | 17,000 lbs / 7,710 kg | 380 lbs / 172.40 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2004 | Pipe Cradle for 12–24" pipe. 4 strand | 28,000 lbs / 12,700 kg | 880 lbs / 399.20 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2005 | Pipe Cradle for 24–36" pipe. 2 strand | 28,250 lbs / 12,813 kg | 1,650 lbs / 750.00 kg | 50 x 35 x 20" / 1,270 x 889 x 508 mm
2006 | Pipe Cradle for 24–36" pipe. 4 strand | 56,700 lbs / 25,700 kg | 3,700 lbs / 1,678.00 kg | 102 x 75 x 40" / 2,717 x 1,905 x 1,016 mm
Technical specifications
Mathey Dearman’s Pipe Slings and Cradles provide a secure method to move and position pipe for pipeline installation projects. Models cover pipe diameters from 2–36" (50.8–914 mm) and feature 4" urethane "round cut" wheels with sealed anti-friction bearings. All spreader bar designs are third-party tested and compliant with industry standards. Models use 5/8" wire rope; all rope assemblies are swedged and certified.
Availability
ONLY STOCKED IN AMERICAS
Features and advantages
- 95A urethane coating sized for repeated use
- Sealed anti-friction bearings for smooth rotation
- Wheel: 4" tread width x 4.5" diameter
- 5/8" swedged and certified wire rope
- Machined hub for consistent wheel performance
- 4" roller replacement: Part No. 90024, with protective metal end flange and radius cutout for pipe profiles
Part numbers and specifications
PART NO. | DESCRIPTION | LOAD CAPACITY | SHIPPING WEIGHT | DIMENSIONS L x W x H
2001-3 | Pipe Sling for 2–8" pipe – 3 rollers | 2,900 lbs / 1,300 kg | 50 lbs / 22.70 kg | 16 x 16 x 16" / 406.4 x 406.4 x 406 mm
2001-4 | Pipe Sling for 2–12" pipe – 4 rollers | 2,900 lbs / 1,300 kg | 60 lbs / 27.20 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2001-5 | Pipe Sling for 2–18" pipe – 5 rollers | 2,900 lbs / 1,300 kg | 70 lbs / 31.80 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2001-7 | Pipe Sling for 2–24" pipe – 7 rollers | 2,900 lbs / 1,300 kg | 85 lbs / 38.60 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2002 | Pipe Cradle for 6–12" pipe. 2 strand | 17,000 lbs / 7,710 kg | 200 lbs / 90.70 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2003 | Pipe Cradle for 12–24" pipe. 2 strand | 17,000 lbs / 7,710 kg | 380 lbs / 172.40 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2004 | Pipe Cradle for 12–24" pipe. 4 strand | 28,000 lbs / 12,700 kg | 880 lbs / 399.20 kg | 40 x 48 x 16" / 1,016 x 1,219.2 x 406 mm
2005 | Pipe Cradle for 24–36" pipe. 2 strand | 28,250 lbs / 12,813 kg | 1,650 lbs / 750.00 kg | 50 x 35 x 20" / 1,270 x 889 x 508 mm
2006 | Pipe Cradle for 24–36" pipe. 4 strand | 56,700 lbs / 25,700 kg | 3,700 lbs / 1,678.00 kg | 102 x 75 x 40" / 2,717 x 1,905 x 1,016 mm
Technical specifications
- Size range: 2–36" (50.8–914 mm)
- Wheels: 4" round-cut urethane, 95A, with sealed anti-friction bearings
- Wheel dimensions: 4" tread width x 4.5" diameter; replacement roller PN 90024
- Optional roller: 4" x 6" with radial cutout for pipe profiles
- Wire rope: 5/8" swedged and certified
- Spreader bars: third-party tested and industry-compliant
