Solvent pipe PF, KF series
glass

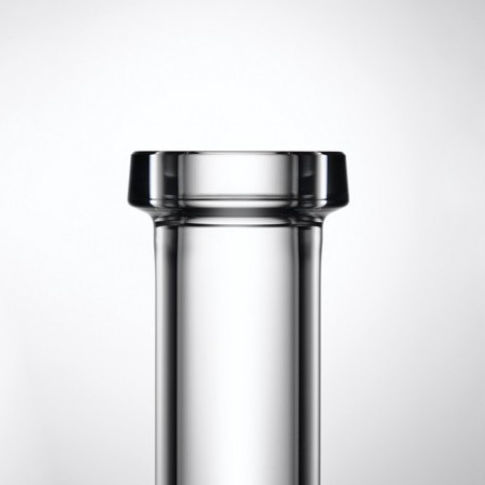

Solvent pipe - PF, KF series - MAVAG AG - glass

Solvent pipe - PF, KF series - MAVAG AG - glass - image - 2

Add to favorites

Compare this product

Characteristics

Use

for solvents

Material

glass

Pressure

Max.: 6 bar
(87.023 psi)

Min.: 1 bar
(14.504 psi)

Temperature

Max.: 200 °C
(392 °F)

Min.: -50 °C
(-58 °F)

Description

Horizontally laid pipes are loaded with the liquid content in addition to their own weight In order to distribute this load evenly, an appropriate number of supports must be provided More detailed information on laying can be found in the chapter „Technical Information“ KF: Flanges designed as in drawing with KF ball and KF cup Permissible operating temperature: -50...+200°C Permissible operating pressure: 1...6 barg DN015-025, -1...4 barg DN040-050, 1...3 barg DN080, -1...2 barg DN100-150, 1...1barg DN200-300, -1...0,5 barg DN400-600 Material product contacting: borosilicate glass 3.3
