4G LTE antenna 1011122GexternalIP67
Add to favorites
Compare this product
Characteristics
- Network
- 4G LTE, 2G
- Type
- external
- Other characteristics
- IP67, linear polarized, smart
- Frequency
Min.: 698 MHz
Max.: 2,690 MHz
- Gain
Min.: 0 dB
Max.: 2.5 dB
Description

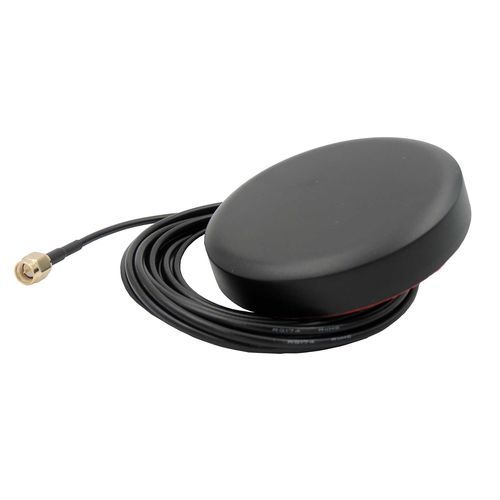

Particularly affordable 4G roof antenna from our Smart Collection
Ideal for screw mounting on control cabinets
max. 2.5 dbi gain
3m cable, SMA
Technical specifications
Networks: 4G/3G/2G/ISM
Frequencies: 698-960/1710-2690 MHz
Gain: max. 2,5 dbi
Mounting type: Mounting on the control cabinet (drilling required)
Cable length: 3m RG174
Connector: SMA (male)
Dimensions: Ø approx. 81.3mm, height approx. 14.6mm
Protection class: IP67 (except cable outlet)
