4G LTE antenna 1011072GISM band3G UMTS
Add to favorites
Compare this product
Characteristics
- Network
- 4G LTE, 2G, ISM band, 3G UMTS
- Type
- external
- Frequency
Min.: 800 MHz
Max.: 2,600 MHz
- Gain
Min.: 0 dB
Max.: 4 dB
Description

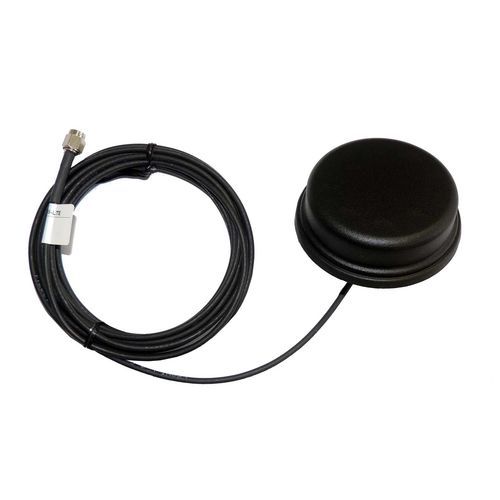

High-quality 4G roof antenna from the German manufacturer Reel/Reinheimer
Ideal for screwing onto control cabinets
High vandalism resistance
maximum 4dbi gain
5m RG 174 cable, SMA
Particularly high protection class IP69k
Technical specifications
Networks: 4G/3G/2G/ISM
Frequencies: 800/850/900/1800/1900 + 2100 MHz + 2600 MHz
Gain: max. 4 dbi
Mounting type: Mounting on the control cabinet (drilling required)
Cable length: 5m RG174
Connector: SMA (male)
Dimensions: Ø approx. 76mm, High approx. 23mm
Protection class: IP69k (TÜV certified)
