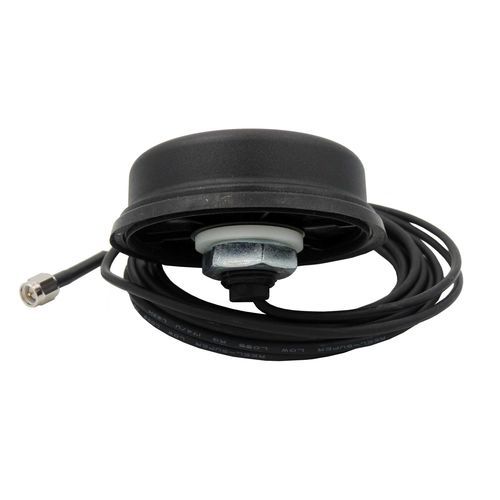

GPS antenna 1010304G LTE2GISM band
Add to favorites
Compare this product
Characteristics
- Network
- GPS, 4G LTE, 2G, ISM band, 3G UMTS
- Type
- external
- Frequency
Max.: 2,600 MHz
Min.: 850 MHz
- Gain
Max.: 4 dB
Min.: 0 dB
Description
Particularly high-quality LTE /GPS roof antenna from the German manufacturer Reel/Reinheimer
Ideal for screwing onto control cabinets
High vandalism resistance
maximum 4dbi gain
2 x 5m RG 174 cable, SMA
Particularly high protection class IP69k
Technical specifications
Networks: 4G/3G/2G/ISM/GPS
Frequencies: 850/900/1800/1900 + 2100 MHz + 2600 MHz+GPS
Gain: max. 4 dbi
Mounting type: Mounting on the control cabinet (drilling required)
Cable length: 2 x 5m RG 174
Connector: SMA (male)
Dimensions: Ø approx.76mm, height ca. 23mm
Protection class: IP69k (TÜV certified)
