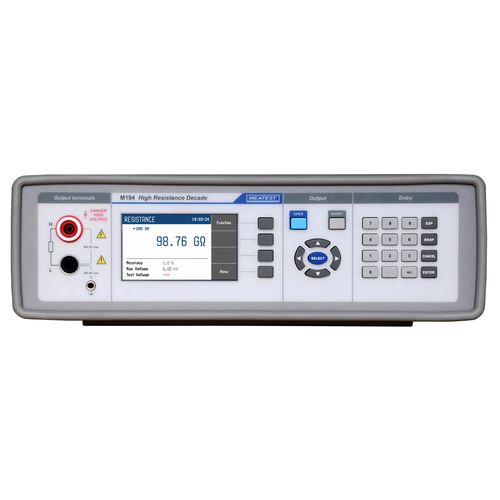

Resistance decade box M194

computer-controlledprogrammablehigh-voltage

M194 High Resistance Decade is based on M6xx Series Real-Resistance Programmable Decades, providing cutting-edge performance, user-friendly calibration of resistance ranges as well as test meter ranges, timer and short current testing of UUTs. Main feature of M194 is adjustable high resistance decade in continuous range from 10 kΩ to 100 GΩ with 4 digit resolution. Designed for maximum operating voltages of up to 6 kVDC this decade is great for calibration of meggers, megohmmeters and insulation testers. Accuracy from 0.1 %. Full remote control and automated calibration support is a standard for all Meatest instruments. On top of that, M194 comes with 4 interfaces (RS232, USB, LAN and GPIB) to match your system more easily. Specifications: DC resistance: 10 kΩ - 100 GΩ, 6.3 kV max. (± 0.1% / year) Test signal meter: DC voltage: 50 V - 6.3 kV (± 0.5% / year) DC current: 0 - 10 mA (± 0.2% / year)
