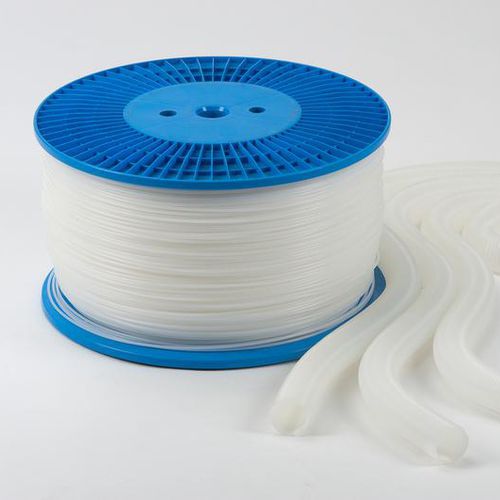

Compressed air hose TN seriespolyamidefor vacuum
Add to favorites
Compare this product
Characteristics
- Use
- for compressed air
- Material
- polyamide
- Applications
- for vacuum
- Inner diameter
Min.: 1 mm
(0.039 in)Max.: 16 mm
(0.63 in)- Outer diameter
Min.: 2 mm
(0.079 in)Max.: 18 mm
(0.709 in)- Pressure
Min.: 9 bar
(130.534 psi)Max.: 55 bar
(797.708 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)
Description
FEATURES
Polyamide 6 of chemical origin. We produce linear hoses in different colors.
TEMPERATURE
Products of the series TN can be used in a temperature range from -10°C to 80°C.
TOLLERANCES
± 0,05 on wall thickness
± 0,05 on oØ up to Ø 10 mm
± 0,10 on oØ from 12 to 18 mm
± 0,5% on weight
APPLICATIONS
Industrial automation; Vacuum equipment; Lubrication; Machine tool; Robotics;
