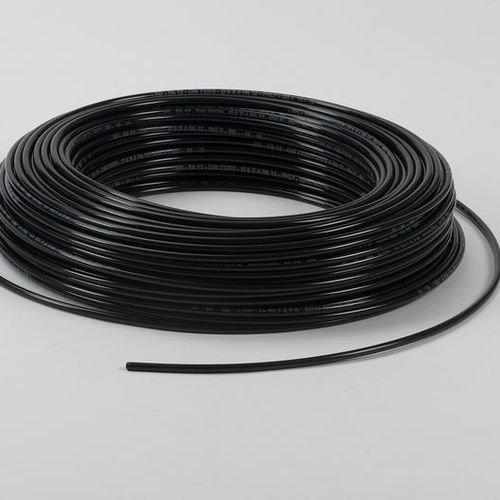

Chemical product hose 12PHLY series
PA12for vacuumflexible

chemical product hose
chemical product hose
Add to favorites
Compare this product


Characteristics

Use
for chemical products
Material
PA12
Applications
for vacuum
Other characteristics
flexible, chemical-resistant, hydrolysis-resistant
Inner diameter

Max.: 14 mm
(0.551 in)

Min.: 4 mm
(0.157 in)

Outer diameter

Max.: 18 mm
(0.709 in)

Min.: 6 mm
(0.236 in)

Pressure

Max.: 45 bar
(652.67 psi)

Min.: 20 bar
(290.075 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Description

FEATURES Semi-flexible Polyamide 12 of chemical origin. PHLY: plasticized, stabilized to temperature and light with high burst pressure and shock resistance to cold temperatures. Raw material has been manufactured to meet the requirements of DIN 73378/74324. Range available in black color. TEMPERATURE Products of the series 12PHLY can be used in a temperature range from -40°C to 80°C. TOLLERANCES ± 0,07 on wall thickness ± 0,07 on oØ up to Ø 10 mm ± 0,1 on oØ from 12 to 18 mm ± 0,5% on weight APPLICATIONS Industrial automation; Vacuum equipment; High temp above 100; Low temp below 10; Chemical resistance; Low permeability; Pest control lines; Petrolium based chemical transfer; Clutch system; Breaking systems truck trailers; Hydrolysis resistance;
